Philips

Maxos TST5 - TL5 49 W single-ended - Through-wiring 7x2.5mm² - White

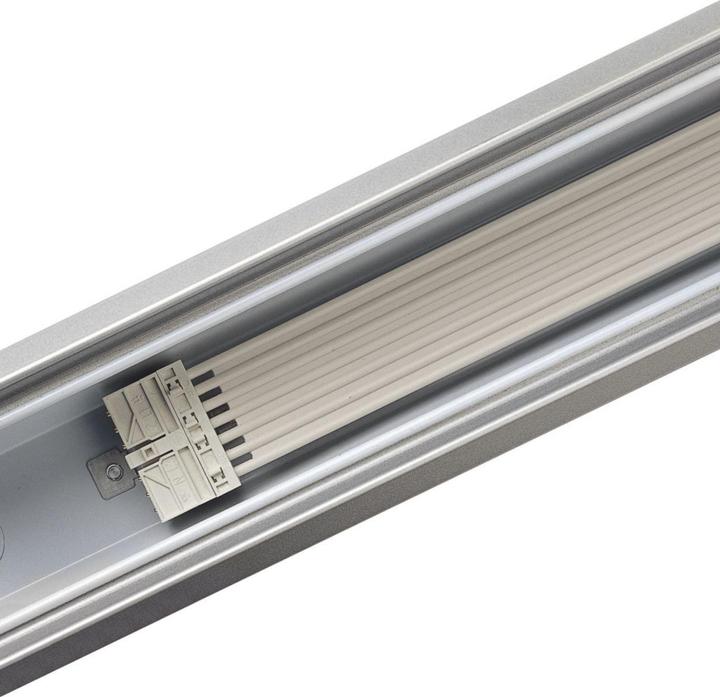

The mounting rail serves two purposes: it acts as a stable mounting rail for the light fixtures and as a housing for the power supply cables of the individual units. All rail sections are made of white or silver-painted galvanized steel. They are available in special TL5 lengths for 1, 2, and 3 light fixtures for 49 W (35 W, 80 W) and 54 W (28 W). The Maxos LED light fixture 4MX850 491 is also used with these mounting rails. One (5- or 7-wire) or two (2 x 5-wire or 2 x 7-wire) flat cables are integrated into the rail, allowing for safe and correct wiring at any time in conjunction with an integrated phase selector switch and terminal blocks. The 7-wire cable is used to connect a lighting control system or emergency lighting to the light fixtures equipped with an emergency battery pack. Double cables (2 x 5- or 2 x 7-wire) are required when the light fixtures are to be connected to a complete separate power supply. They are primarily used for emergency lighting via central emergency batteries or separate switching operations. In these cases, no additional terminal blocks or cables are required. For suspended light bands, the rail sections are connected via the integrated electrical connection and a robust external mechanical coupling piece (accessory). Ceiling-mounted light bands utilize the same integrated electrical connection and an internal coupling (accessory). The cables can be routed as needed through special breakout openings in the upper area of the rail section. The mounting rail comes with a complete range of interchangeable components, allowing for very flexible installation. The excellent stability of the sections and couplings is guaranteed.

Actual product image Philips 4 mx656 491 7 x 2.5 WH - Kits Support-(2.12 kg, 1479 mm)

Key specifications

Lighting accessories type

Application range

Smart Home

Item number

4 mx656 491 7 x 2.5 WH - Kits Support-(2.12 kg, 1479 mm)

Lighting accessories

General information

Colour

Material

Accessory properties

Smart home features

Power supply

Origin

Sustainability

Voluntary climate contribution

Scope of delivery

Product dimensions

Warranty
