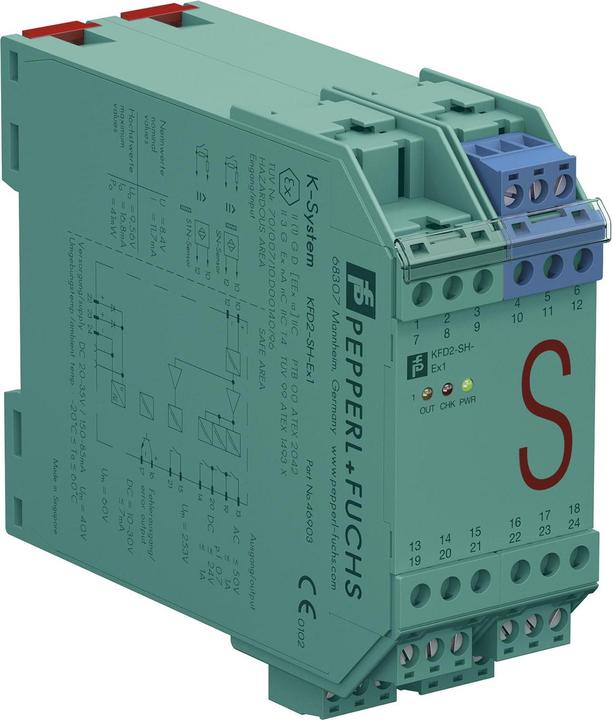

Pepperl & Fuchs PepperlFab Isolating Switching Amplifier 1-Channel,A:Relai KFD2-SH-Ex1

Pepperl+Fuchs Factory Isolation Switching Amplifier KFD2-SH-Ex1

Manufacturer: Pepperl+Fuchs Factory
Designation: 1-Channel Isolation Switching Amplifier
Relay Type: KFD2-SH-Ex1
Type of Power Supply: Active
Rated Operating Frequency: 0 Hz
Rated Supply Voltage for DC: 20..35 V
Number of Inputs according to NAMUR: 1
Number of Inputs, potential-free: 1
Switching Voltage: 50 V
Switching Current: 1 A
Number of Channels: 1
Number of Output Circuits Relay Normally Open: 2
Fault Signal Output: Yes
Galvanic Isolation between Inputs: No
Galvanic Isolation between Input and Output: Yes
Galvanic Isolation between Output to Output: Yes
Galvanic Isolation between Supply Voltage and all other Circuits: Yes
Suitable for Safety Functions: Yes
SIL according to IEC 61508: 3
Performance Level according to EN ISO 13849-1: Level d
Width: 40 mm
Height: 107 mm
Operating Temperature: -20..60 °C
Device Design: Mounting Device
Type of Electrical Connection: Screw Connection
Mounting Type: Snap-on Mounting Rail
Depth: 115 mm
Protection Class (IP): Other

Additional Details:
v_shortname: Switching Amplifier
Device provides intrinsically safe circuits for equipment protection level: Ga, Gb, Gc, Da, Db, Dc
Device suitable for installation in equipment protection level: Gc
Device provides intrinsically safe circuits for Division: Div. 1, Div. 2
Safety Integrity Level: SIL 3
Signal Type: Binary Input
Number of Channels: 1
Field Side Device: SN/S1N Sensor, potential-free Contact
Control Side Type: Relay (Normally Open)
Transmission Direction: to Control
Functions: Fault Signal Output, Line Fault Monitoring
Supply: 24 V DC
Supply Connection: Terminals or Power Rail
Connection Type: Screw Terminals
Housing Width: 40 mm
Ambient Temperature: -20 ... 60 °C (-4 ... 140 °F)
EAN: 4050143058082.
