Peha Shutter/blind module

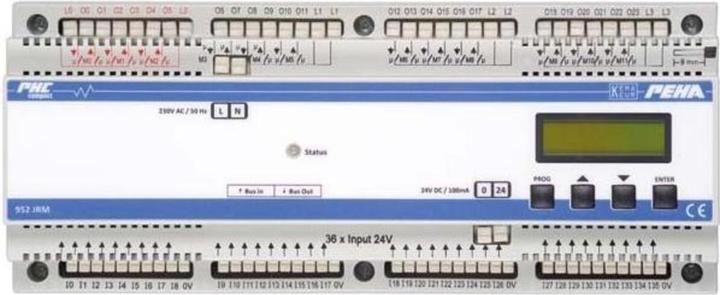

Peha Shutter/Jalousie Module REG D 952 JRM

Manufacturer: Peha
Description: Shutter/Jalousie module REG for DIN rail
Type: D 952 JRM
KNX Bus System: no
KNX Radio Bus System: no
Radio Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: PHC
Bidirectional Radio: no
Mounting Type: REG
Width in Division Units: 12
With Bus Coupling: yes
Bus Module Removable: no
Local/Manual Control: no
With LED Display: no
Number of Inputs: 36
Switching Current Resistive: 1 A
Max. Number of Shutter Outputs: 12
Switching Function: yes
Type of Current: AC
Protection Class (IP): IP20

Further Details:
Shutter/Roller shutter module for snap-on installation on DIN rail, 24 outputs 230 V~ for 12 shutter motors (max. 1 A), 24 inputs 24 V for 12 double push buttons UP/DOWN, 2 inputs for central control for double push buttons UP/DOWN, 1 input for automatic ON/OFF for a switch, 6 inputs for 3 groups for double push buttons UP/DOWN, 3 inputs for twilight, sun sensor, and wind/rain sensor. Clear, logical menu with LCD display for setting switching times with daily/weekly program and group affiliation as well as for sensor assignment. A special connection for a residual current circuit breaker for wet rooms is possible, including power supply 230 V AC/24 V DC, including connection cable 30 cm, 216 mm wide (12 TE).
EAN: 4010105299519.
