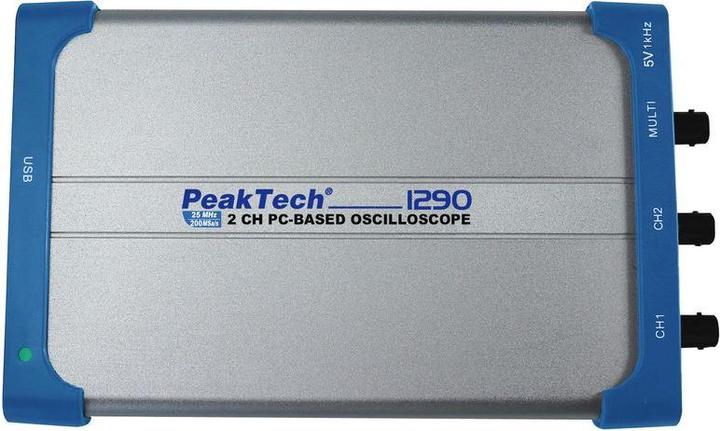

Peaktech Oscilloscope PC 2x25 MHz ( 1290)

The PeakTech Oscilloscope PC 2x25 MHz (Model 1290) is a powerful measuring instrument specifically designed for electronic applications. With two channels and a bandwidth of 25 MHz per channel, it allows for precise signal analysis. The connection to the computer is made via a USB interface, transforming the PC into a versatile oscilloscope. The device offers a maximum sampling rate of 250 MS/s and a memory depth of 32 K points per channel, enabling detailed signal capture. The vertical resolution of 8 bits and a wide input sensitivity range from 10 mV/div to 10 V/div make it adaptable to various signal strengths. The time base settings from 5 ns/div to 50 s/div allow for the observation of both high-frequency and slowly varying signals. Its compact design and lightweight make it ideal for use in the field or in the lab.

• Two analog input channels with 25 MHz bandwidth per channel
• Maximum sampling rate of 250 MS/s and memory depth of 32 K points per channel
• Versatile standard measurement functions including FFT analysis
• Various trigger modes for stable waveform representation
• Compatible with Windows operating systems and includes software.
