PCE Instruments PCE-T 394 PCE-T 394 Temperature data logger Measured variable Temperature

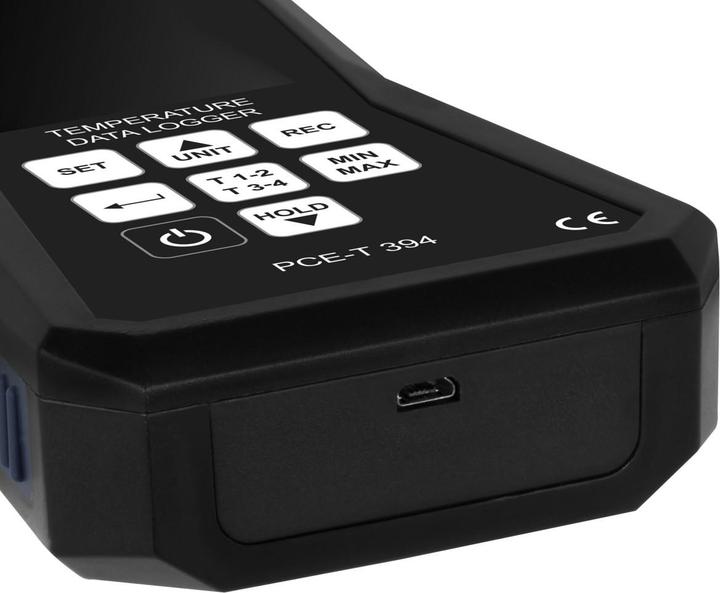

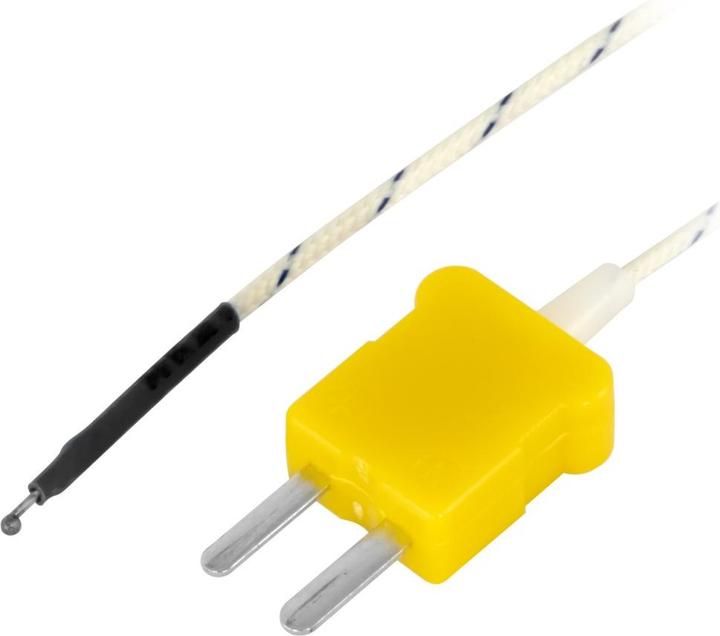

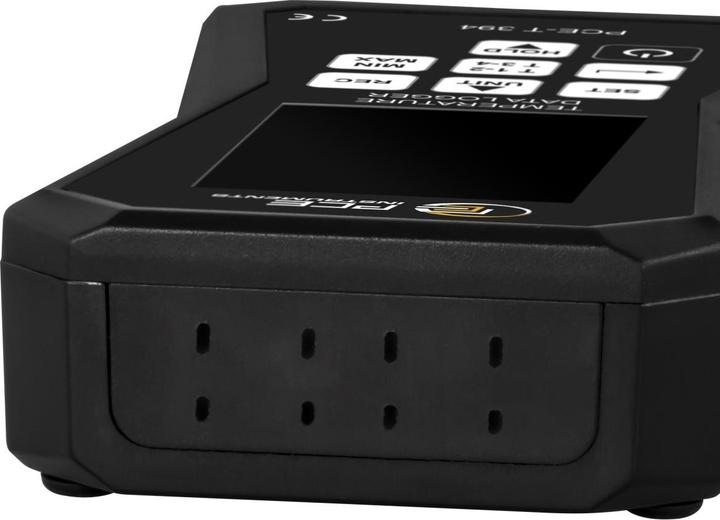

The 4-channel thermometer with data logger offers precise temperature monitoring. With a measurement range of -210 to 1370 °C and support for thermocouple types K and J, it enables accurate measurements in various environments. Its 4 input channels allow for simultaneous monitoring of multiple measurement points, making it ideal for complex applications. Before the recording mode can be started, the thermometer must be connected to a PC via a micro-USB port, and the parameters must be configured using the PC software. The storage interval, the number of measurements, and the starting point of the data logger can be set. With this feature, up to 32,000 data records can be recorded. The interval can be adjusted in increments from 1 second to a maximum of 24 hours. The thermometer's software also allows for data export in PDF and CSV formats. The measurement functions MIN, MAX, AVG, and HOLD enable precise data collection and analysis. The thermometer automatically shuts off after 20 minutes of inactivity to save energy and extend the operating time of the 3.7 V Li-Ion battery. The auto power off function can also be disabled. The thermometer is charged via the micro-USB interface and comes with a convenient carrying case.
