PCE Instruments Netz-Analysegerät 3phasig, 1phasig mit Loggerfunktion, inkl. S

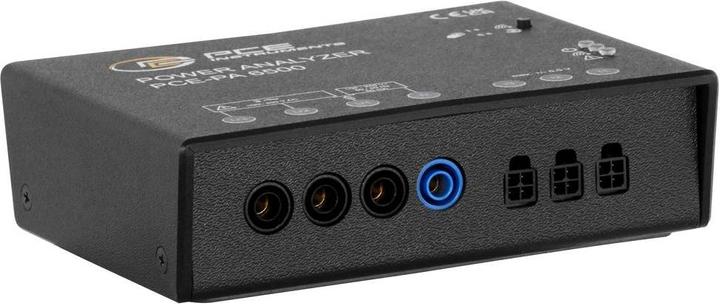

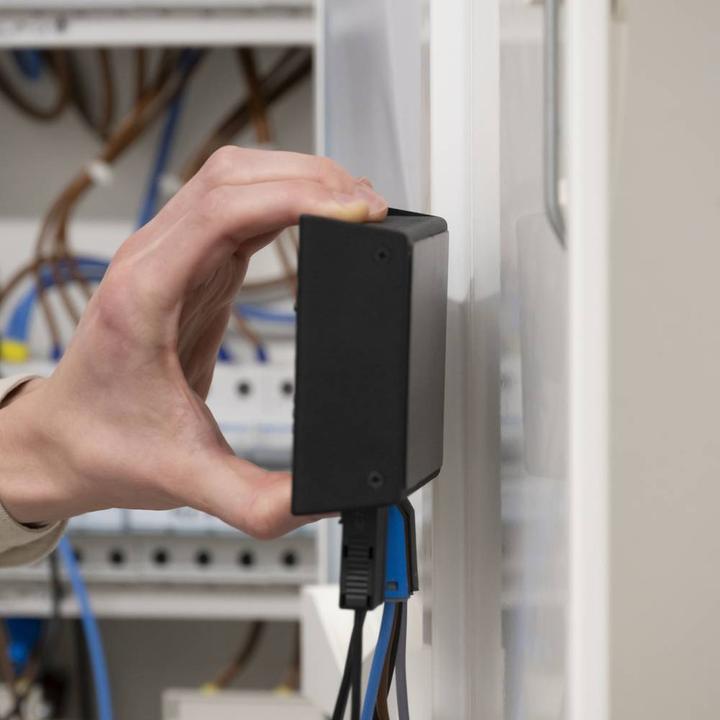

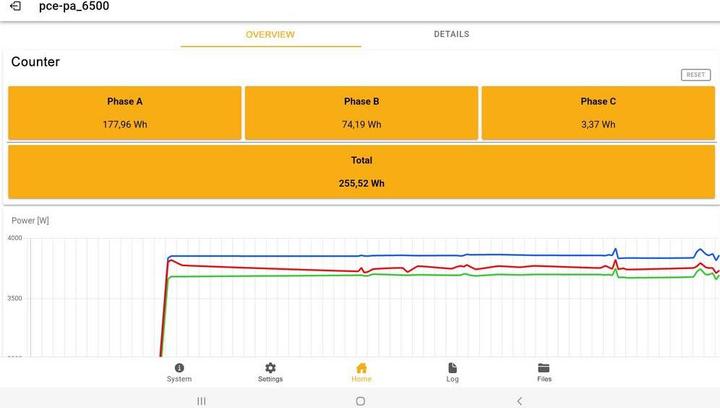

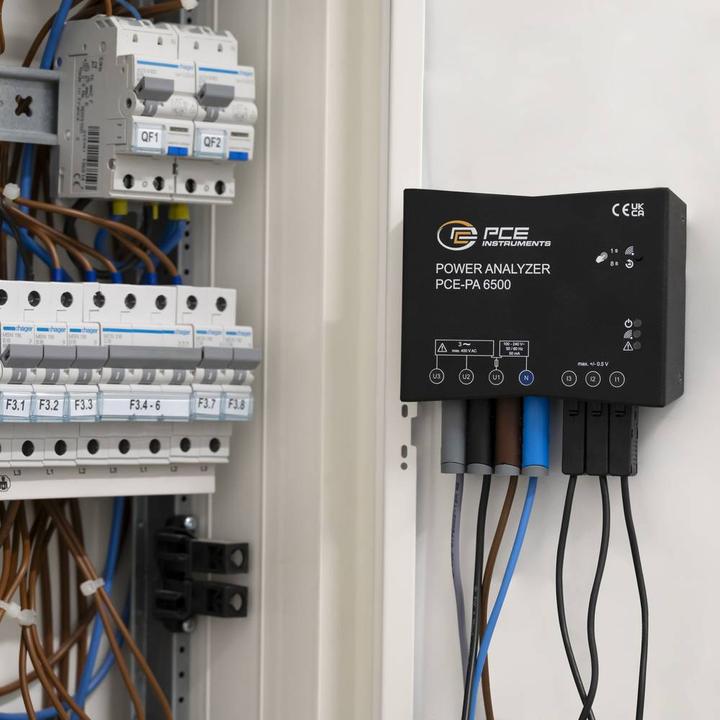

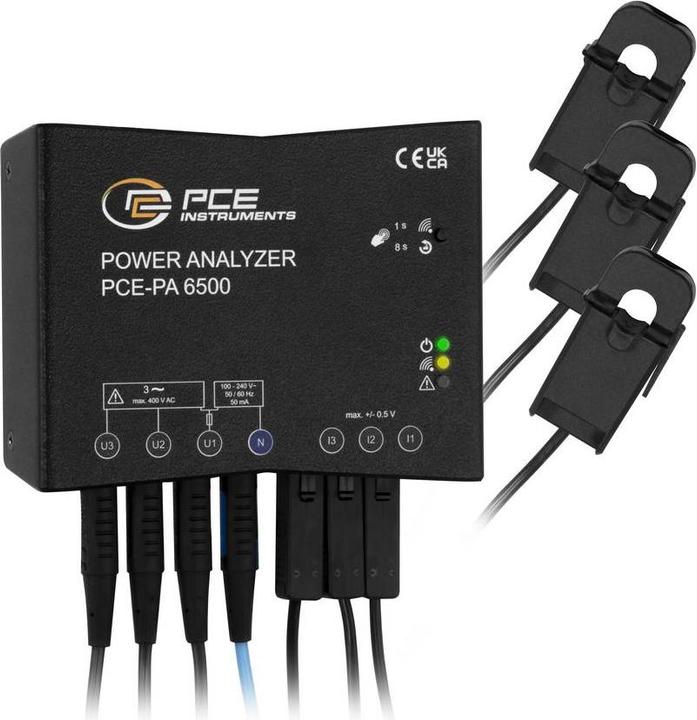

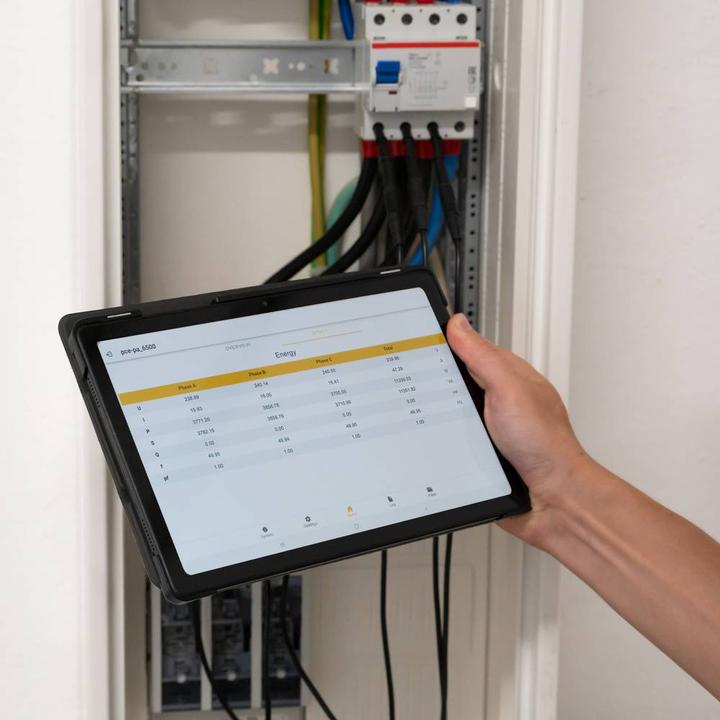

The power measurement device measures current and voltage values using the connected current transformers and measuring cables. From this, the active, reactive, and apparent power is determined and transmitted to an end device via Wi-Fi in real-time. The data is stored historically and can then be analyzed in tabular or graphical form. Additionally, it is possible to export the measurement results to an end device. Measurements with the power measurement device are carried out using Rogowski coils or clamp-on current transformers. If there is no internet connection, the data can be recorded in the built-in 32 GB SD card memory as a CSV file for later processing. Even with second-by-second recording, the duration of recording exceeds one year. There is also the option to periodically send the CSV files via email, upload them to a server via FTP, or transfer them to the measurement platform after the measurement is completed. Interaction with the power measurement device primarily occurs via Wi-Fi and web browser or through an app. The power supply and measurement are conducted using magnetic measurement probes or connection terminals. The power measurement device can be connected to any main and sub-distribution as well as to devices and systems without interrupting the power supply. Thanks to its magnetic housing back, the power measurement device can be attached to any metallic surface. Managing the power supply is of utmost priority. Without measuring consumption and capturing instrumental values such as current, voltage, frequency, and power, improving efficiency is hardly possible. The energy measurement device enables monitoring of total energy consumption and helps reduce energy costs.
