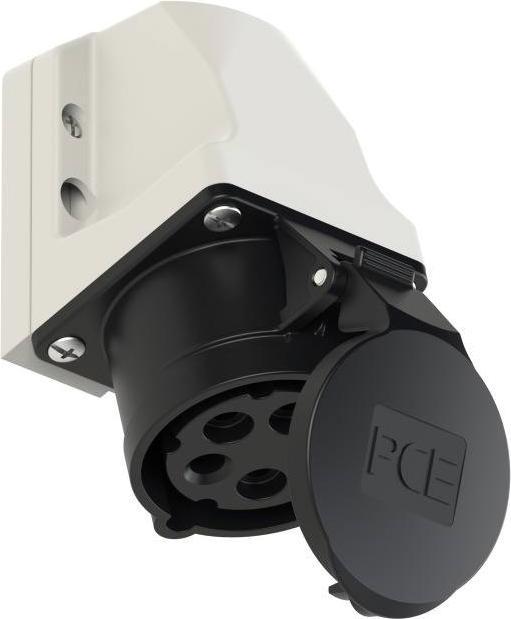

PCE 115-7k Wall socket 16A 5p 7h IP44
Product details
The PCE 115-7k wall socket is a robust RCD socket designed for use in demanding environments. With a rated voltage of 500 volts and a rated current of 16 amps, it provides a reliable power supply for various applications. The socket features five connections and meets the IP44 protection class, which protects it against the ingress of water and dust. The housing is made of high-quality PA6 plastic, while the contacts are made of brass to ensure optimal conductivity and durability. The flexible cable entry can be made from the top or the back, facilitating installation. Additionally, the wall socket is equipped with screw terminals that guarantee a secure connection of the wires. These features make the PCE 115-7k wall socket an ideal choice for industrial and commercial applications.
- IP44 protection class for increased resistance to environmental influences
- Five connections for versatile applications
- High-quality materials: PA6 housing and brass contacts
- Flexible cable entry from the top or back.
Number of cans | 5 x |
Socket type | CEE 16/5 |
Item number | 23165541 |
Material group | Metal, Plastic |
Material | Brass, PA6 |
Socket type | FI socket |
Socket type | CEE 16/5 |
Number of cans | 5 x |
Protection type (IP code) | IP44 |
Nominal current | 16 Ah |
Nominal voltage | 500 V |
connector type | Screw terminals |
CO₂-Emission | |
Climate contribution |
