PC Engines APU4D4 Starter Kit - 1 GHz, 4 GB RAM, 4x LAN, Intel i211

Ratings
Delivered between Wed, 13.8. and Fri, 22.8.
More than 10 pieces in stock at supplier
free shipping

Product details

PC Engines APU4D4 Starter Kit - 1 GHz, 4 GB RAM, 4x LAN

This board version is targeted at applications that require 4 LAN ports.

APU4D updates:

  • Minimize leakage from V3A to V3 rail (SD card compatibility)
  • Fix USB header J12 pinout
  • Change SIM switch to FXLA2203, FXLA2204 went EOL
  • 10-pin LPC header to allow for future TPM option

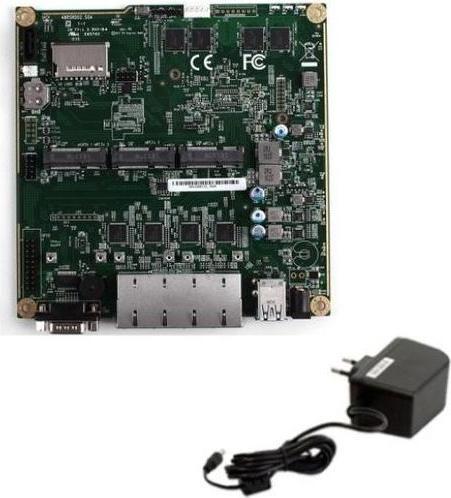

The Starter Kit includes:

  • APU4D4 system board
  • 12 V, 2 A power supply
  • CPU: AMD Embedded G series GX-412TC, 1 GHz quad Jaguar core with 64-bit and AES-NI support, 32K data + 32K instruction cache per core, shared 2 MB L2 cache
  • DRAM: 4 GB DDR3-1333 DRAM
  • Storage: Boot from SD card (internal SDHCI controller), external USB or mSATA SSD, 1 SATA + power connector, mSATA is shared with miniPCI express
  • 12 V DC, about 6 to 12 W depending on CPU load, jack = 2.5 mm, center positive
  • Connectivity: 4 Gigabit Ethernet channels (Intel i211 NIC)
  • I/O: DB9 serial port, 2 USB 3.0 external + 2 USB 2.0 internal, three front panel LEDs, pushbutton
  • Expansion: 3 miniPCI express (J13 USB or mSATA, with SIM; J14 USB only, with SIM; J15: full miniPCI express, but no SIM, intended for Wi-Fi). GPIO header, optional I2C bus, COM2 (3.3V RXD / TXD)
  • Board size: 6 x 6" (152.4 x 152.4 mm) - same as APU1D, ALIX2D13 and WRAP1E
  • Firmware: Coreboot
  • Cooling: Conductive cooling from the CPU to the enclosure using a 3 mm aluminum heat spreader (included).

Key specifications

Development board type
Starter kit
Memory
4000 MB
Processor family
Intel
Clock speed
1000 MHz
Number of cores
4
Item number
21617322

General information

Manufacturer
PC Engines
Category
Development boards + Kits
Manufacturer no.
344652
Release date
3.8.2022

Development board properties

Development board type
Starter kit
Processor family
Intel
Clock speed
1000 MHz
Memory
4000 MB
Number of cores
4

Power supply

Power supply
Electrical connection
Operating voltage
12 V

Wireless transmission

Wireless transmission
Wi-Fi
Wi-Fi standard
802.11ad

Connections

USB ports
USB-A
Exact USB ports
USB-A 2.0 (2x), USB-A 3.0 (4x)
Memory card type
SD

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
914.40 mm
Width
914.40 mm
Height
914.40 mm

Package dimensions

Length
23.60 cm
Width
16.80 cm
Height
9.20 cm
Weight
462 g
