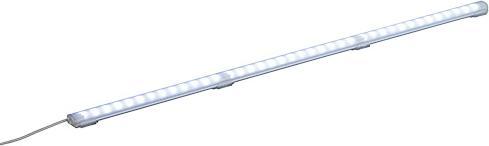

Patlite LED light strip, length: 900mm with 3m cable

The LED light bars of the CLA series provide bright, uniform light from an IP-69K compliant housing. They are suitable for use in high-temperature environments, such as laundries, the food industry, and pharmaceuticals, as well as for illuminating control panels and workstations. With four different installation options and six different lengths ranging from 100 mm to 1200 mm, this product is also an alternative to fluorescent tubes.

Specifications

Dimensions without brackets:

• 124 mm x 30 mm x 19.5 mm
• 224 mm x 30 mm x 19.5 mm
• 324 mm x 30 mm x 19.5 mm
• 624 mm x 30 mm x 19.5 mm
• 924 mm x 30 mm x 19.5 mm
• 1224 mm x 30 mm x 19.5 mm

Nominal voltage: 24 V DC
Functions: Continuous only
Mounting:

• Snap-in screw mounting bracket
• Snap-in magnetic mounting bracket
• Side mounting bracket
• Internal mounting, in any direction

Housing style: Polycarbonate housing
Housing color: Translucent white

Light source:

• High-intensity LED chip, daylight
• High-intensity LED chip, amber (only 324 mm size)
• Average lifespan (specified when brightness drops to 70%): 40,000 hours

Lens material: Translucent white polycarbonate resin

Compliance standards:

• CE marking
• UL
• RoHS

Protection class:

• IP66
• IP67
• IP69K.
