Product details

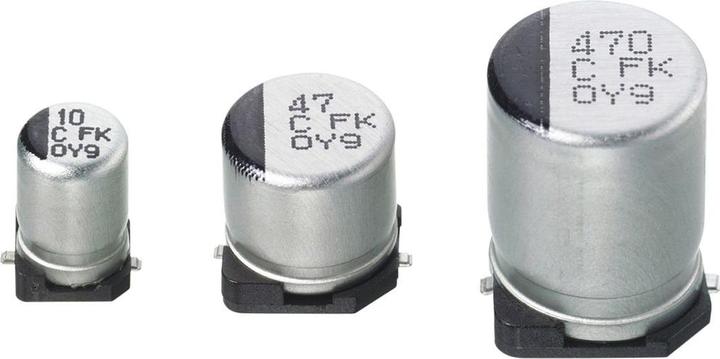

The FK type electrolytic capacitor from Panasonic is a high-quality component designed for various applications in electronics. With a capacitance of 22 µF and a rated voltage of 50 V, this capacitor provides reliable performance across a wide temperature range of -55 °C to 105 °C. Its lifespan of 2000 hours ensures long-term use, while the leakage current of 11 µA and ripple current of 165 mA facilitate efficient energy transfer. The capacitor is polarized and comes in a convenient tape and reel packaging, making handling and assembly easier. Additionally, it meets the automotive industry qualification standards (AEC-Q200), making it an excellent choice for demanding applications.
- Maximum operating temperature of 105 °C and minimum operating temperature of -55 °C
- Lifespan of 2000 hours for reliable performance
- Leakage current of only 11 µA for high efficiency
- Ripple current of 165 mA for stable power supply
- Meets automotive industry qualification standards (AEC-Q200).
Capacitor type | Electrolytic capacitor |
capacity | 22 µF |
Operating voltage | 50 V |
permissiveness | 20 ± % |
Item number | 47743595 |
Manufacturer | Panasonic |
Category | Capacitor |
Manufacturer no. | EEEFK1H220P |
Release date | 11.8.2024 |
Minimum order | 10 |
Minimum order | 10 |
Capacitor type | Electrolytic capacitor |
capacity | 22 µF |
Operating voltage | 50 V |
permissiveness | 20 ± % |
Min. temperature | -55 °C |
Max. temperature | 105 °C |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer Panasonic fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Height | 0 m |
Width | 0.01 m |
Length | 0.10 m |
