Palmer Audio PAN 02 DI box active
DI boxDelivered between Mon, 6.4. and Tue, 7.4.
5 pieces in stock at supplier
5 pieces in stock at supplier
free shipping
Product details

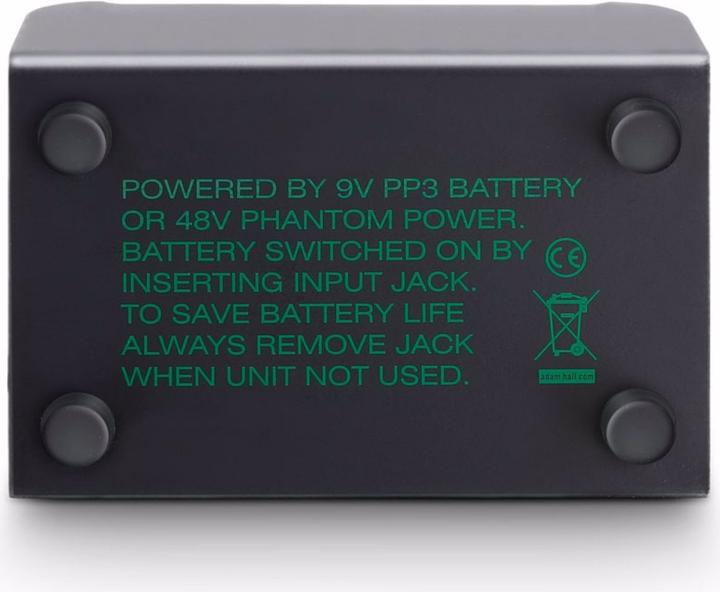

Standard active DI box. Can be powered by a 9V battery or 48V phantom power. High-impedance input, higher output level than a passive DI box. The active circuit allows for a high input impedance of 1 MOhm and greater sensitivity of the input signal. Typical difference between input and output is -4 dB. The maximum output voltage with phantom power is +10 dBu. Output: transformer balanced. Thanks to a special "floating ground" circuit, the ground lift switch also works with phantom power. Steel housing dimensions: 110 x 73 x 42 mm.
Audio area of use | Instruments, Music events, Recording studio |
Compatibility | Bass, Guitar, Keyboards, Synthesizer |
Item number | 17497600 |
Manufacturer | Palmer Audio |
Category | Audio effects |
Manufacturer no. | PAN02 |
Release date | 16.11.2021 |
Audio area of use | Instruments, Music events, Recording studio |
Compatibility | Bass, Guitar, Keyboards, Synthesizer |
effect type | DI box |
Effect Device Features | Phantom Power Supply |
Number of channels | 1x |
Effects unit Format | Tabletop |
Signal processing | Analogue |
Audio inputs | 6.3mm jack |
Audio outputs | XLR |
CO₂ emissions | 41.54 kg |
Climate contribution | CHF 0.98 |
Depth | 7.30 cm |
Width | 11 cm |
Height | 4.20 cm |
Weight | 353 g |
Length | 13.70 cm |
Width | 8.40 cm |
Height | 4.70 cm |
Weight | 362 g |
