Osram Vialox

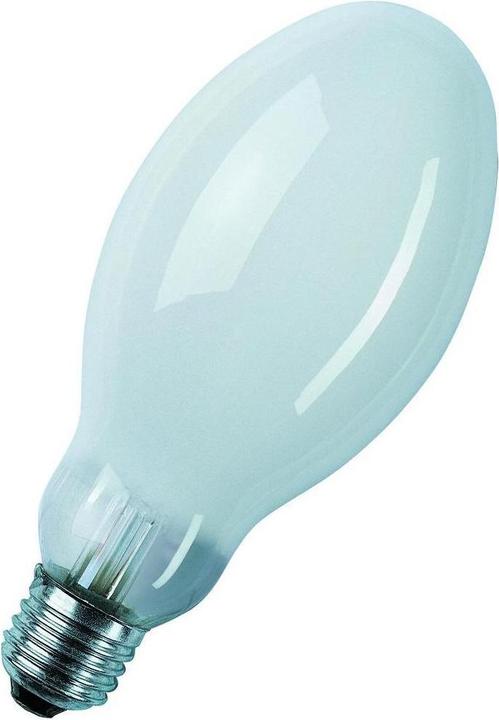

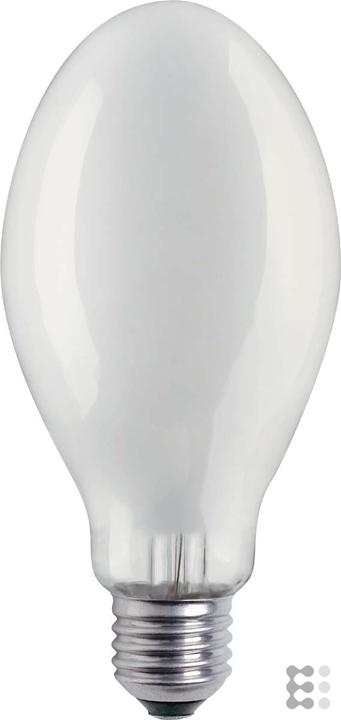

Osram lamp Vialox lamp NAV-E 100 Super 4Y

Manufacturer: Osram
Designation: Vialox lamp 100W E40
Type: NAV-E 100 Super 4Y
Lamp power: 100 W
Luminous flux: 10100 lm
Base: E40
Lamp shape: Ellipsoid
Color rendering index CRI: 20-39
Color temperature: 2000 K
Lamp light output: 101 lm/W
External ignition device required: Yes
External ballast required: Yes
Mercury-free: No

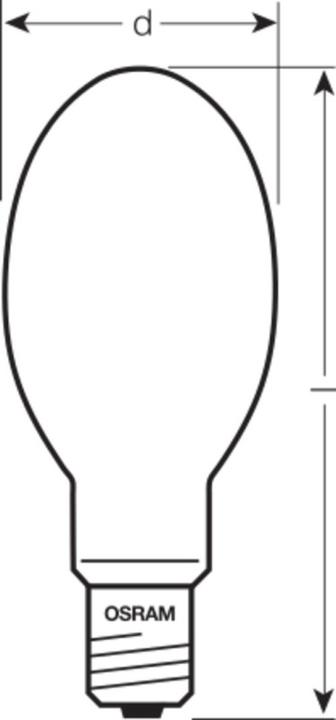

Total length: 180 mm
Diameter: 76 mm
Number of burners: 1
Plant lighting: No
Design: Frosted
Replacement for mercury vapor lamp: No
Energy efficiency class according to EU directive 2019/2015: F
Weighted energy consumption in 1,000 hours: 104 kWh
Average rated lifetime: 32000 h
Lamp designation: ED23.5

Osram lamp Vialox lamp NAV-E 100 Super 4Y: Additional details
High-pressure sodium vapor lamps for open and closed fixtures.

Product features:
Lamp survival rate: 95% at 16,000 h burning time.
Lamp maintenance factor: 80% at 16,000 h burning time (according to DIN 13201).
Useful lifetime (maintenance cycle): 4 years (at approx. 11 h/day).
Dimmable with conventional and electronic ballasts.

Product advantages:
Very high light output.
Very good luminous flux behavior over the lifetime.
Up to 50% energy savings when replacing mercury vapor lamps (HQL).
Optimal energy efficiency when operated with EVG POWERTRONIC® PTo 3DIM.

Application areas:
Streets.
Outdoor lighting.
Industrial facilities.
Suitable for closed and open fixtures.
Outdoor applications only in suitable fixtures.
