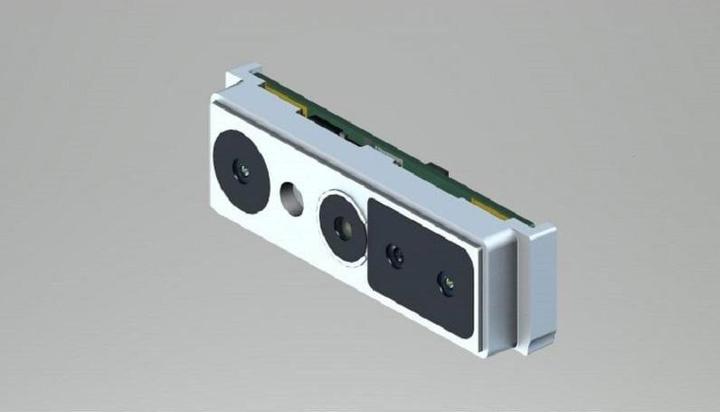

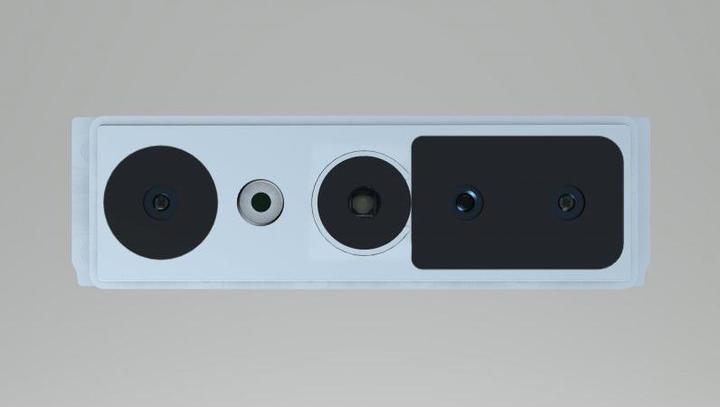

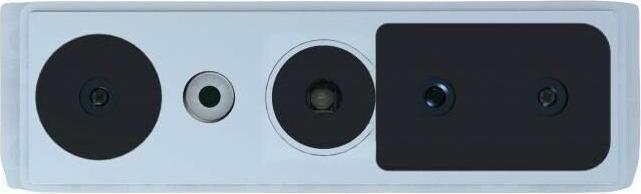

Orbbec 3D Stereo S

The Orbbec3D Stereo S is a very compact 3D camera with a high RGB/image resolution of 1920 x 1080 pixels at 30 FPS. The depth images are available in a resolution of 640 x 400 Px or 320 x 200 Px at 30 FPS. The data obtained can be used for a variety of applications via the USB Type-C port. These cameras are already being used today in the following areas:

• Robotics / autonomous systems
• Quality control
• 3D scanners / full body scanners & handheld

This wide range of applications is made possible not only by excellent hardware but also by mature software and driver packages, making the Orbbec Stereo S compatible with ROS, OpenNI2, Astra SDK, and more.

Features of the Orbbec3D Stereo S

The Orbbec3D Astra Stereo S offers the advantage of outdoor use compared to the Embedded S and Astra Mini. It should be noted that the 3D camera is not protected against moisture; rather, it absorbs sunlight and thus generates high-resolution images and depth data.

Technical specifications

• Depth Images: 640 x 400 Px 30 FPS | 320 x 200 Px 30 FPS
• RGB/Image resolution: 1280 x 720 Px | 1920 x 1080 Px
• Depth FOV: 67.9H 45.3V 78D
• RGB FOV: 59.8H 46.6V 71.8D
• Dimensions: 59.6 x 17.4 x 10.4 mm
• Measurement range: 0.3 - 3 m
• Data & power supply: USB
• Power consumption: < 2.36 W

Delivery includes

• 1 x Orbbec Astra Stereo S 3D camera.
