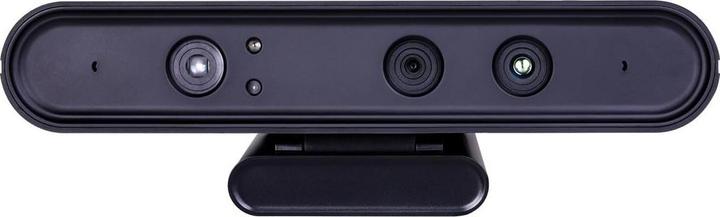

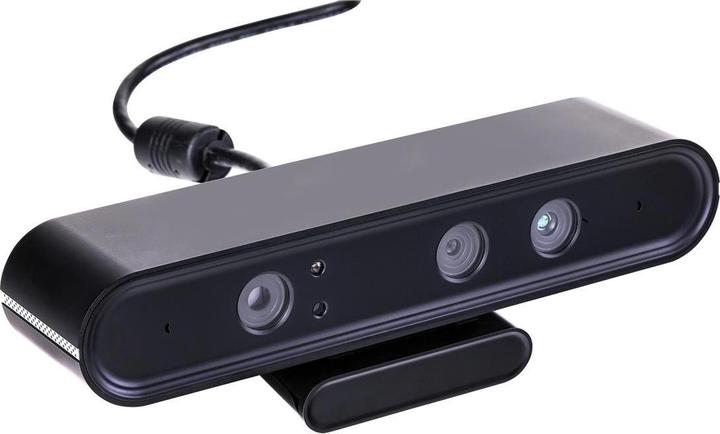

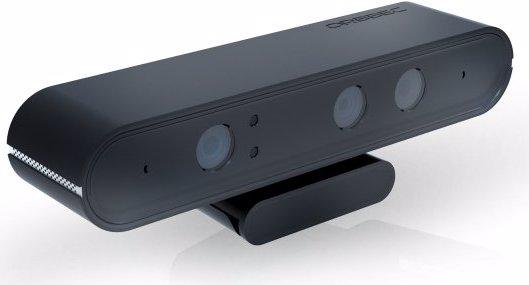

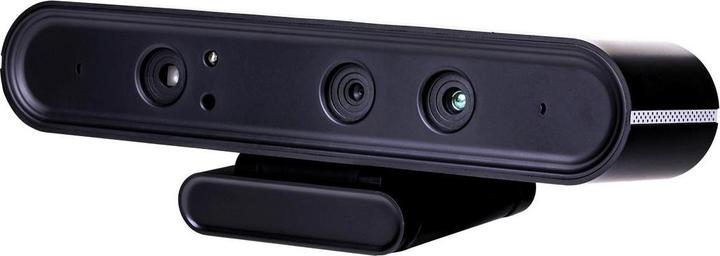

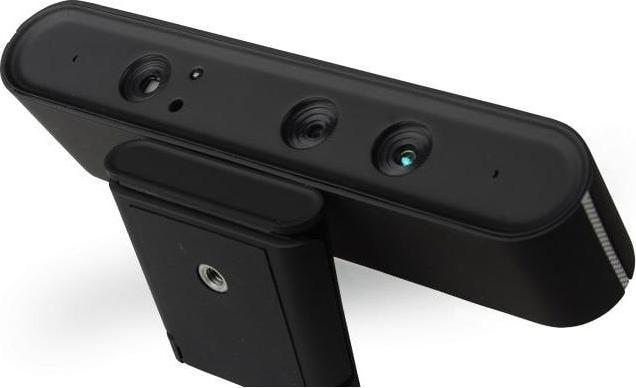

Orbbec 3D Astra Pro

The Orbbec3D Astra Pro is a compact 3D camera with an RGB/image resolution of 1280 x 720 pixels at 30 FPS. The data obtained can be used via the USB port for various applications. These cameras are already being utilized today in the following areas:

• Robotics / Autonomous Systems
• Quality Control
• 3D Scanners / Full Body Scanners & Handheld

This wide range of applications is made possible not only by excellent hardware but also by mature software and driver packages. The Orbbec Astra Pro is compatible with ROS, OpenNI2, Astra SDK, and more.

Technical Specifications

• Depth Images: 640 x 480 PX
• RGB/Image Resolution: 1280 x 720 PX
• FOV: 73D 60H 49.5V
• Dimensions: 165 x 40 x 40 mm
• Measurement Range: 0.6 - 5 m
• Two Integrated Microphones
• Data & Power Supply: USB 2.0
• Power Consumption: < 2.4 W
• Measurement Accuracy: 1 m: 1-3 mm | 2-3 m: 12.7 mm

Delivery Contents

• 1 x Orbbec Astra Pro 3D Camera.
