Opt Lasers Original Prusa Laser upgrade PLH3D-2W

Upgrade for your Prusa

The PLH3D-2W engraving laser head is a professional 2W medium power engraving laser head. This lightweight 70g laser requires no external cooling. The heat dissipation structure can not only cool the laser head but also protect the lens from contamination by the air nozzle. The PLH3D-2W is designed to use a standard 12-volt power supply with at least 1.5 A current.

Advantages of the PLH3D-2W:

• Applicable to all Prusa models
• No additional cooling necessary
• Easy installation
• Driver fixed in the laser head

Technical data:

• Focus distance: 20 - 120 mm
• Focused beam spot size @ 30mm: 0.07 x 0.1mm
• Focused beam spot size @ 55mm: 0.07 x 0.15mm
• Operating voltage: 12 - 24 V
• Max power consumption: 2W
• Modulation type: analogue/TTL
• Laser diode wavelength: 450nm

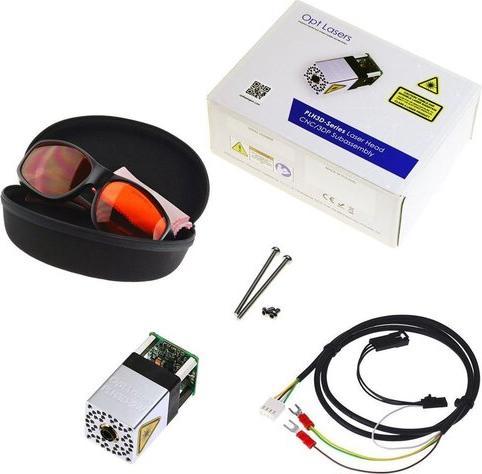

Included in delivery:

• PLH3D-2W laser
• Prusa signal cable
• OPT laser safety goggles.
