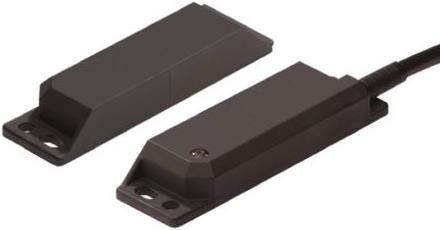

Omron Industrial Automation Switch safety magnetic compact

Supply voltage: 24 Vdc
Safety contacts: 2 normally open/normally closed
Housing material: Plastic
Connection type: M12
Switch type: Rectangular
Connection type: 8-pole M12 connector
Series: F3S-TGR-N_C
Switching distance: 17 mm
Protection class: IP67
Actuator included: Yes
Width: 25 mm

Approved according to EN standards, certified by TÜV Rheinland, compliant with EN 954-1, EN ISO 13849-1, EN 60204-1, EN/IEC 60947-5-3, UL 508, CSA C22.2, BS 5304, EN 1088-1. The F3S-TGR-N_C models are coded. Actuator included. For a suitable control unit, see the G9SA or G9SB from Omron or the NE1A DeviceNet system. Contactless safety switch F3S-TGR. The contactless safety switches F3S-TGR are designed for locking hinged, sliding, or removable protective doors. Switches made of plastic and stainless steel are available. The latter are ideal for the high hygiene requirements in the food industry. The switches have a long detection range to avoid false signals from misaligned doors. Contactless means no wear, hence no particles. Excellent detection of mechanical tolerances. Can be operated behind stainless steel fittings. Screw hole covers. F3S-TGR-N_C switch. Connection of up to 3 switches in series. LED for easy diagnostics. Electronic output (potential-free optocoupler output). Protection class IP67. F3S-TGR-N_R switch. Connection of up to 6 switches in series. Reed contacts. Protection class IP67.
