Oehlbach USB Bridge

USB-DAC
2Ratings
BrandMore from Oehlbach
Currently out of stock
Free shipping starting at 50.–

Product details

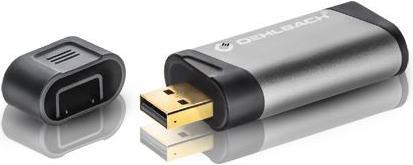

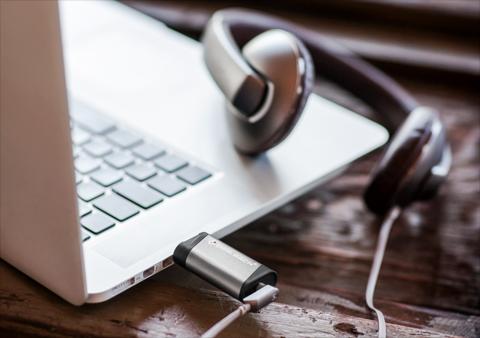

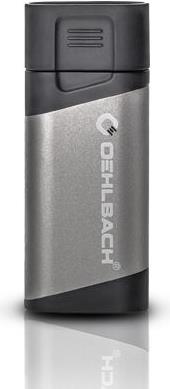

Cable and accessory specialist Oehlbach presents a compact USB DAC headphone amplifier with high-end audio performance. The USB Bridge connects to a free USB port on a PC or Mac and can be immediately used without special software, following the "Plug & Play" principle. The digital audio signal is transmitted directly to the USB DAC, bypassing the internal, acoustically weak hardware of the PC.

Thanks to excellent D/A converters from AKM and the exclusive, low-noise headphone amplifier from Texas Instruments, the USB Bridge delivers HiFi sound in a pocket-sized format. The portable module, shaped like a USB stick, is encased in high-quality aluminum housing, features an LED indicator, and offers a 24-carat gold-plated headphone output. All types of music files can be played back, with the device natively supporting input signals up to 96 kHz/24-Bit.

Key specifications

Headphone amplifier application area
PC
Power supply
USB power delivery
Documents
Manual.pdf, Review.pdf
Item number
5642847

General information

Manufacturer
Oehlbach
Category
Headphone amplifiers
Manufacturer no.
6061
Release date
9.11.2015

Colour

Colour
Black, Grey
Exact colour description
Black, Grey

Headphone amplifier properties

Headphone amplifier application area
PC
Headphone Amplifier Features
USB-DAC

Audio properties

Frequency range
20 - 20000 Hz
signal-to-noise ratio
100 dB
distortion factor
0 %
Sample rate
96 kHz
Audio resolution
24 bits

Connections

Audio outputs
Headphone jack 3.5mm (1x)

Power supply

Power supply
USB power delivery

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Manual, USB extension

Product dimensions

Length
66 mm
Width
27 mm
Height
13.50 mm
Weight
16 g

Package dimensions

Length
16.50 cm
Width
11 cm
Height
6 cm
Weight
48 g
