OBO Bettermann OBO UGD55 350-3R9R Underfloor junction box for GESR9/55UV 467x4

OBO Bettermann Underfloor Device Box UGD55 350-3R9R

Manufacturer: OBO Bettermann
Designation: Underfloor device box for GESR9/55UV
Type: UGD55 350-3R9R

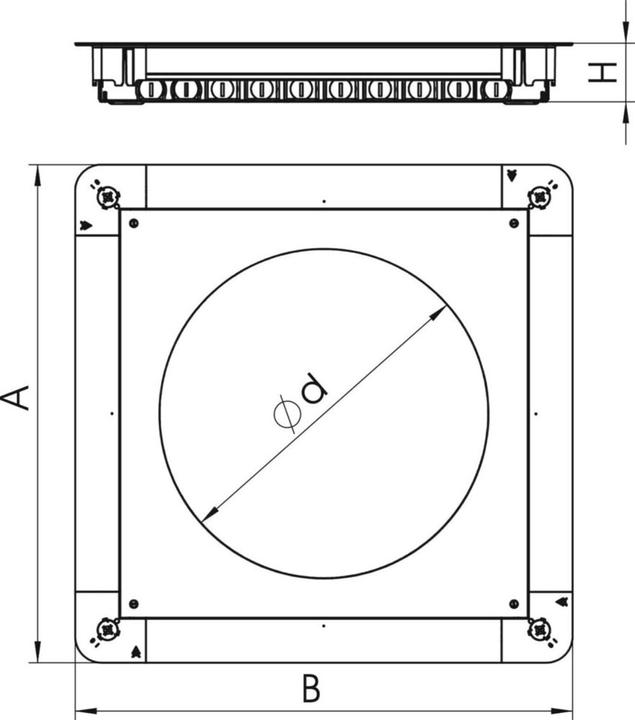

Nominal size: 350 mm
Minimum screed height: 55 mm
Leveling range: 55..80 mm
Suitable for screed-covered underfloor duct: no
Suitable for flush-mounted closed underfloor duct: no
Duct height: 0 mm
Duct width: 190..350 mm
Installation opening for surface tank: no
Installation opening for installation unit: round
Number of devices that can be installed: 9
Material of side wall: steel
Suitable for seal installation: no
Decoupling possibility of upper part from lower part: no
Bottom plate: yes

Further details:

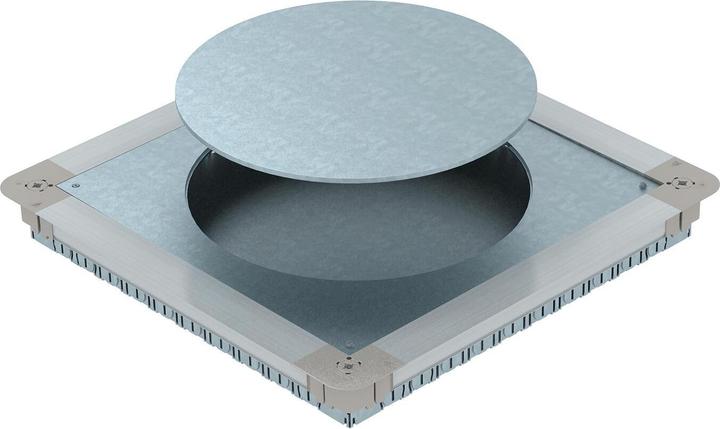

Underfloor device box with mounting cover and blind cover plate with side walls made of sheet steel. For the installation of a square device insert GES9 55 in screed heights starting from 55 mm. Can be continuously leveled to the nominal screed height, and the screed can be worked flush with the screed edge. With pipe entry openings on each side: 7 x M20, 3 x M25, 4 x M32. Usable pipe size at a system height of 55 mm: M20.
