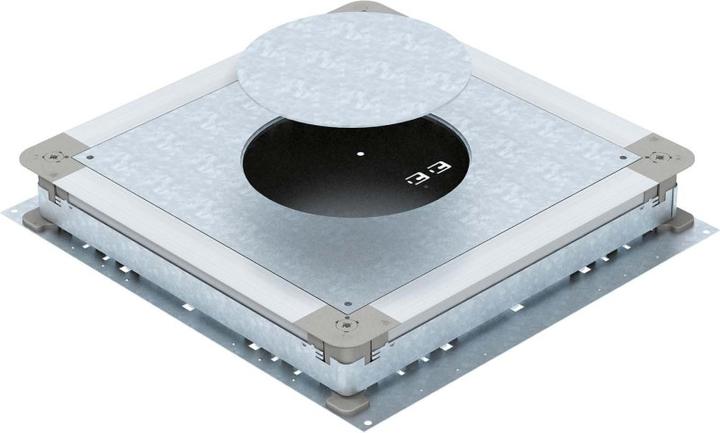

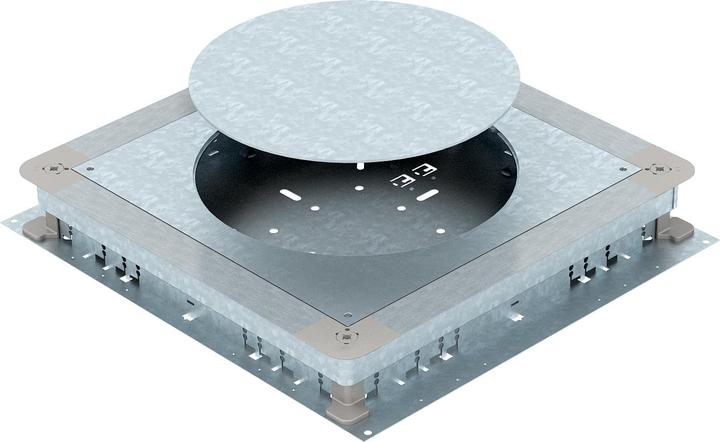

OBO Bettermann OBO UGD 350-3 R9 Underfloor junction box for GESR9

OBO Bettermann Underfloor Device Box UGD 350-3 R9

Manufacturer: OBO Bettermann
Description: Underfloor device box 350-3 for GESR9
Type: UGD 350-3 R9

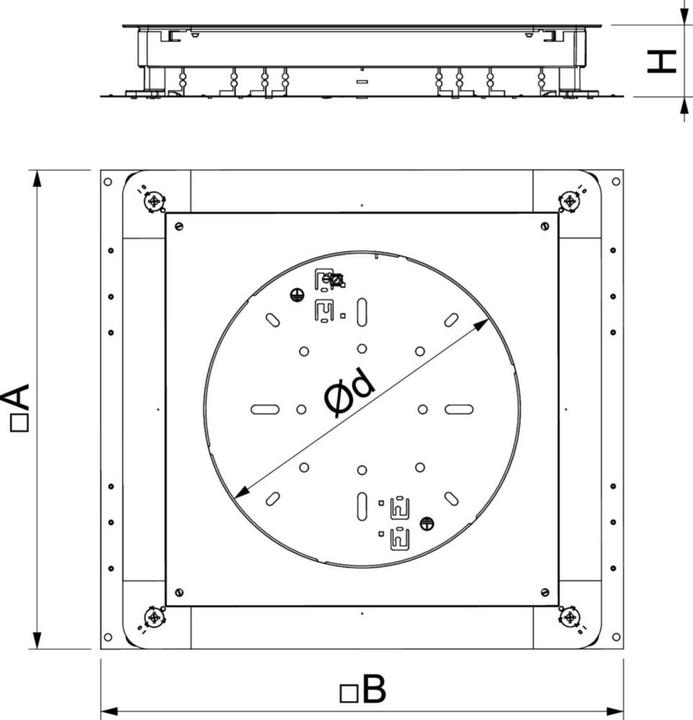

Nominal size: 350 mm
Minimum screed height: 70 mm
Leveling range: 70 to 125 mm
Suitable for screed-covered underfloor ducts: yes
Suitable for flush-mounted closed underfloor ducts: no
Duct height: 28 to 48 mm
Duct width: 190 to 350 mm
Installation opening for surface tank: no
Installation opening for installation unit: round
Number of installable devices: 9
Material of side wall: steel
Suitable for seal installation: yes
Decoupling option of upper part from lower part: yes
Base plate: yes

Additional details:
Underfloor device box for screed-covered underfloor installation ducts with steel sheet side walls. Designed for mounting installation units of the selected nominal size. Can be continuously leveled to the nominal screed height (quick leveling possible) and the screed can be worked flush with the screed edge. With sound decoupling option after screed installation and can also be used for heavy-duty applications with system accessories.
