OBO Bettermann OBO GES9M-2 10U device insert for universal mounting

OBO Bettermann Device Insert GES9M-2 10U

Manufacturer: OBO Bettermann
Description: Device insert for universal mounting
Type: GES9M-2 10U
Cover design: square
Number of device sockets: 3
With cable outlet in the cover: yes
Material of the housing: stainless steel
Material of the cover: stainless steel
Load capacity of the cover: 3 kN
Protection class (IP): IP20
With floor covering cutout: yes
Depth of floor covering cutout: 10 mm
Floor covering protection frame: yes
Color: other
Suitable for underfloor ducts: yes
Suitable for hollow floor installation: yes
Suitable for raised floor installation: yes
Suitable for wet cleaning: no

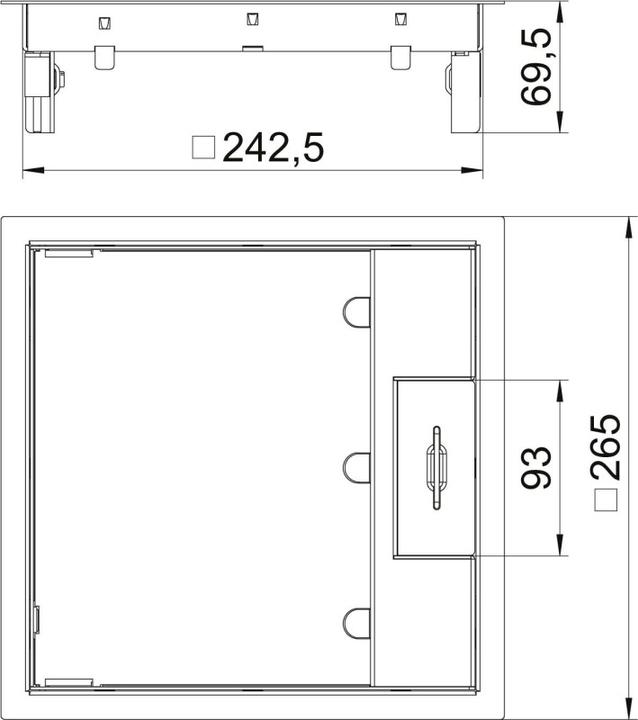

External width: 265 mm
External length: 265 mm
Installation length: 244 mm
Installation width: 244 mm
Min. installation depth: 78 mm

OBO Bettermann Device Insert GES9M-2 10U: additional details

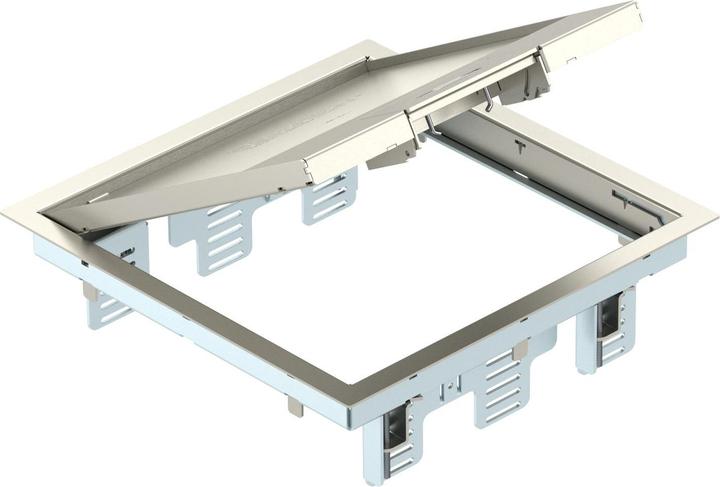

Device insert with handle for up to 12 modular 45 single devices in 3 universal carriers UT4, suitable for use in channel systems and system floors indoors. Snap ladder made of galvanized steel sheet. The floor covering thickness is set to 5 mm, adjustable to 10 mm if needed.
EAN: 4012196028740.
