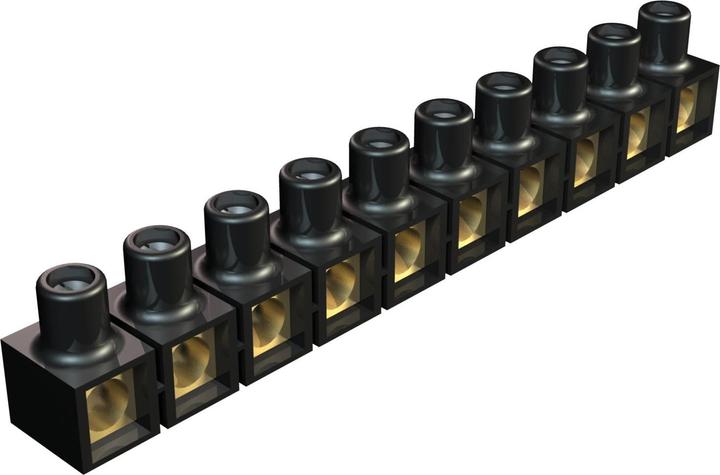

OBO Bettermann OBO 71 10-pole 3x10qmm junction terminal block

OBO Bettermann Junction Terminal 71

Manufacturer: OBO Bettermann
Designation: Junction Terminal black
Type: 71

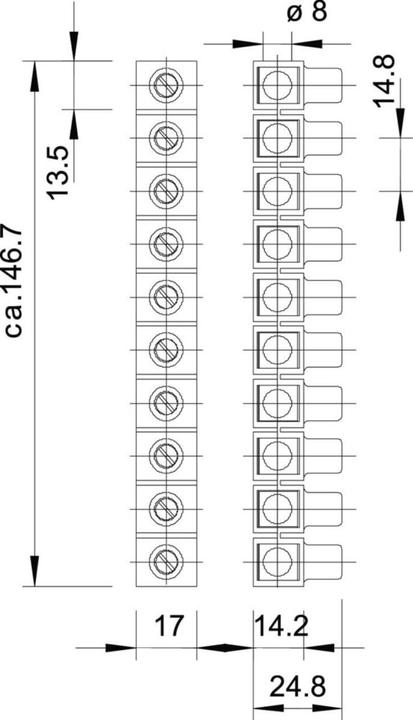

Center-to-center distance: 14.8 mm
Explosion-proof version "Ex e": no
Connectable conductor cross-section single-wire: 6..10 mm²
Rated current In: 24 A
Rated voltage: 380 V
Electrical connection type 1: Screw connection
Number of poles: 10
Number of connection points per pole: 1
Mounting type: Direct mounting
Material of the insulating body: Thermoplastic
Width: 17 mm
Height: 24.8 mm
Depth: 146.7 mm
End plate required: no
Color: black
Transparent: no

OBO Bettermann Junction Terminal 71: additional details
Terminals made of brass, screws made of steel, galvanized and transparently passivated, 10-pole, separable into individual terminals, open on both sides. Screws are tightened and non-removable. Nominal cross-section 10 ÷ mm², nominal voltage 380 V. Max. connectable cross-sections per connection point: 3 x 10 mm², 4 x 6 mm².
EAN: 4012195183914.
