NodOn NODZSIN-4-1-20

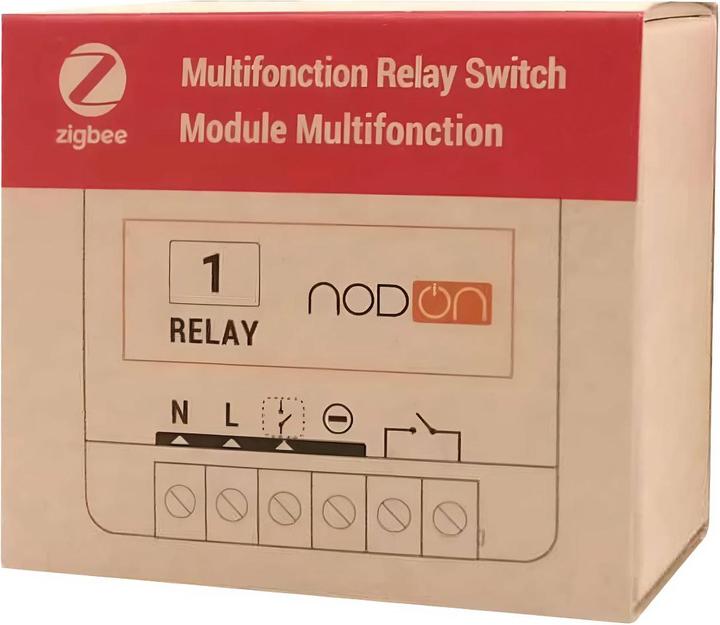

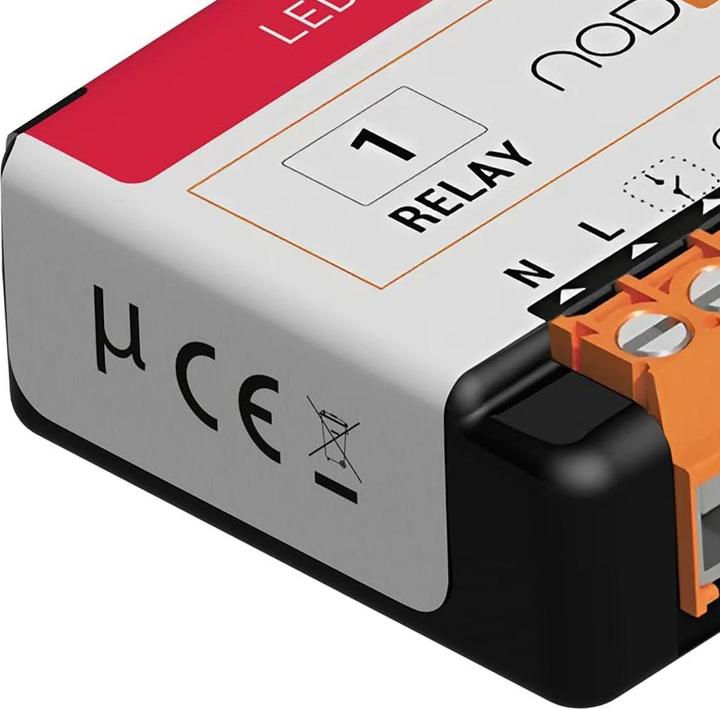

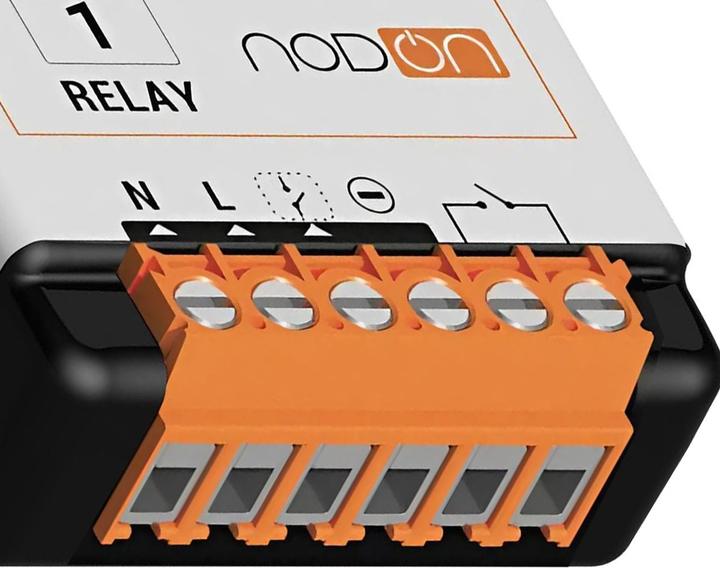

NODZSIN-4-1-20 - NodOn Zigbee 1-channel 16 A relay switch SIN-4-1-20

The NodOn Zigbee relay switch SIN-4-1-20 with 1 channel and 16 A enables the control of garage doors, gates, heaters, sockets, boilers, etc. It can be easily connected to existing devices and makes them remotely controllable with a smartphone, by voice or automatically, which requires a compatible home automation system.

Please note: Requires a Zigbee compatible home automation system.

Features:

• Zigbee 1-channel 16 A relay switch

• Compatible with many Zigbee ecosystems: Zigbee 3.0, this relay switch is 100% Zigbee compatible

• High switching capacity: 3680 W for controlling individual appliances or collectives (water heaters, boilers...)

• Potential-free output: 1

• Energy measurement: No

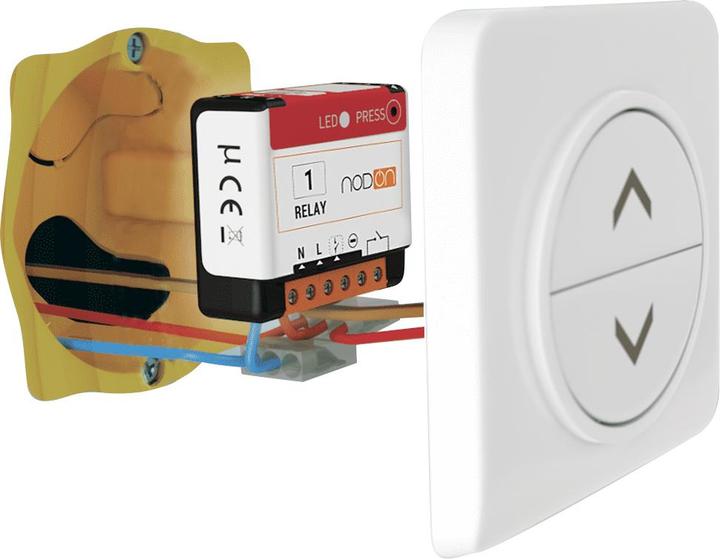

• Ultra-flat profile: Installation in electrical boxes from >30 mm

• Installation without DIY work: On the existing controller or on the switchboard (DIN rail box required)

• Over-The-Air (OTA) update: The relay switch can be updated quickly thanks to the OTA function

• Updates can be carried out via a compatible home automation system

• Power supply: 230 V AC ~ 50 Hz

• Switching capacity: 230 V AC - 16 A

• Consumption: <1 W

• Maximum motor power: 3680 W - integrated zero crossing

• RF protocol: Zigbee 3.0

• Wireless frequency range: 2.4 GHz

• RF power max.: +10 dBm

• Range: Up to 30 m indoors

• Operating temperature: -20°C to 60°C

• Protection class: IP 20

• Device ID type: On/off output (0x0002).
