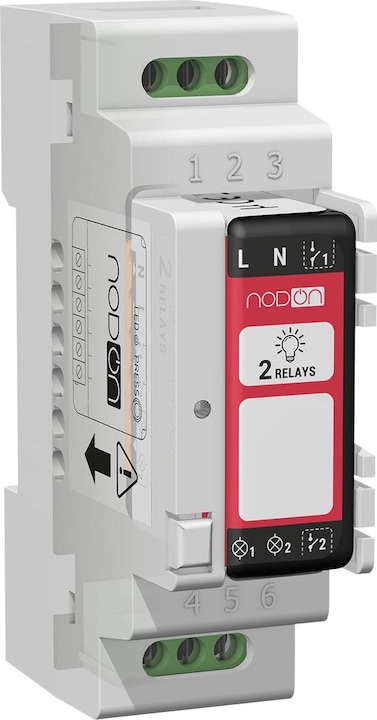

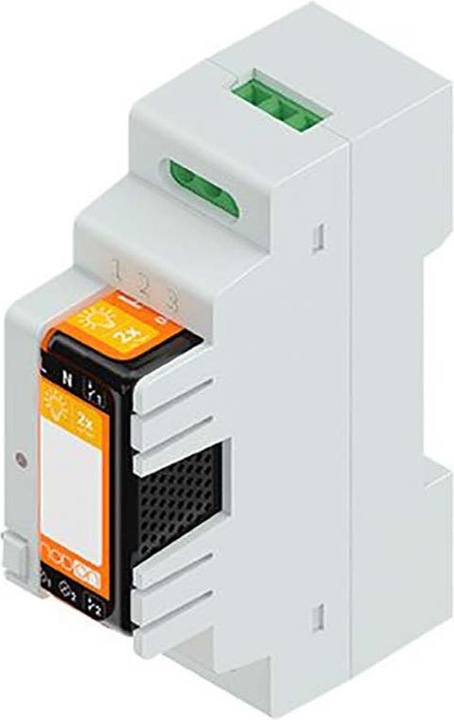

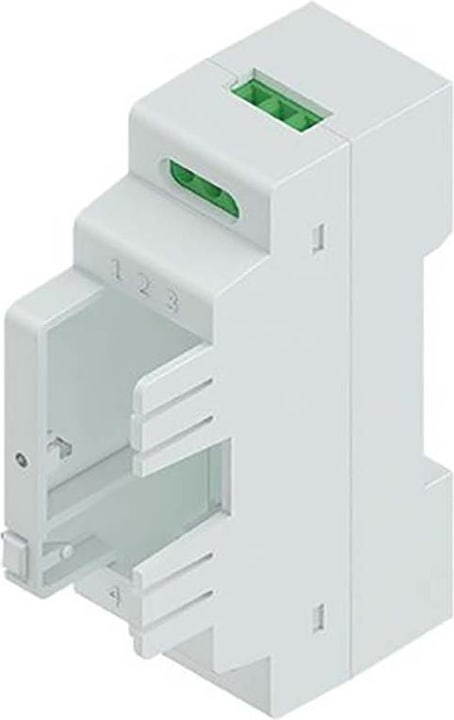

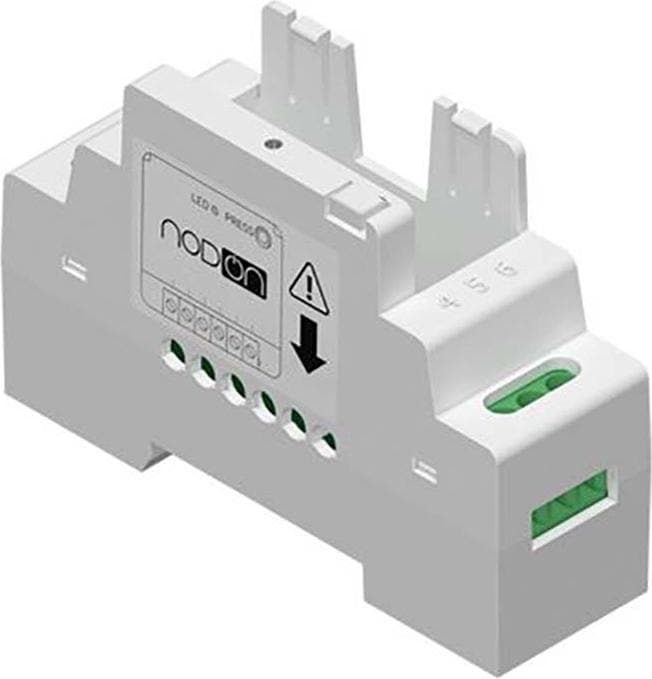

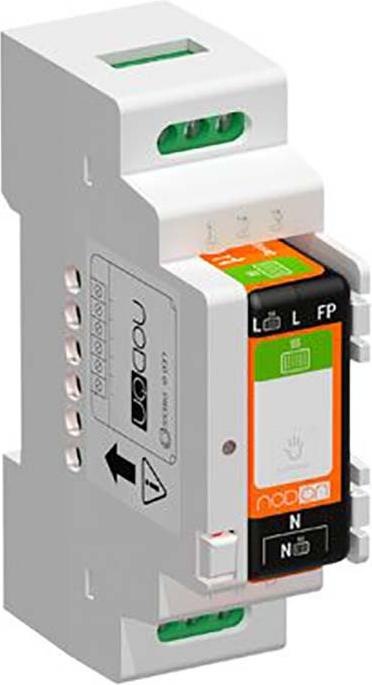

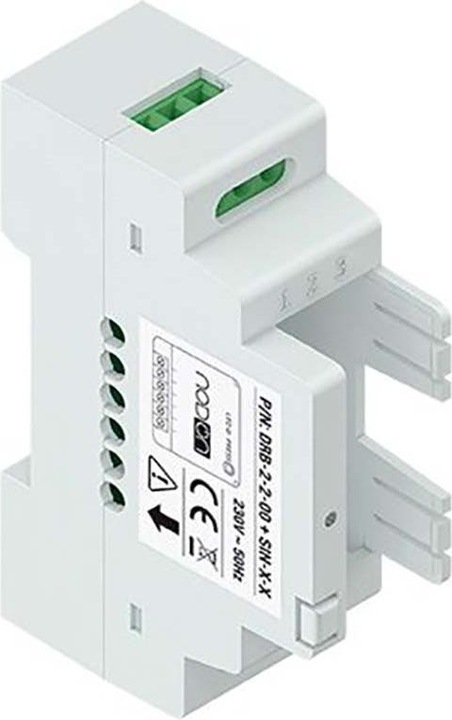

NodOn NOD DRB-1-1-00 - DIN Rail Box for Zigbee or EnOcean Relay Switches (5 pcs.)

NodOn DIN Rail Box for Zigbee or EnOcean Relay Switches (5 pieces)

The NodOn DIN rail box allows the installer to wire the relay switches directly in the distribution board. Ideal for new installations and renovations, this DIN rail box offers significant time savings before installation and on-site.

Features:

• DIN rail compatible type Ω EN 50022: The DIN rail box can be installed in almost all distribution boards in the residential and service sectors.

• Compatible with NodOn relay switches: The DIN rail box is compatible with the on/off light relay switch, the shutter module, and the multifunction and pilot wire relay switches.

• Quick installation of the relay switch/box: The relay switch can be quickly installed in the DIN rail box thanks to the internal pins and external slots.

• Easy wiring in the distribution board: The DIN rail box is easy to wire due to its terminals 1 to 6.

• Compatible relay switches: SIN-X-1-XX, SIN-X-2-XX, SIN-X-RS-XX, SIN-X-FP-XX.

• Compatible DIN rail: Type Ω EN 50022.

• Maximum current: 16 A.

• Operating temperature: -20°C to 40°C.

• Protection class: IP20.
