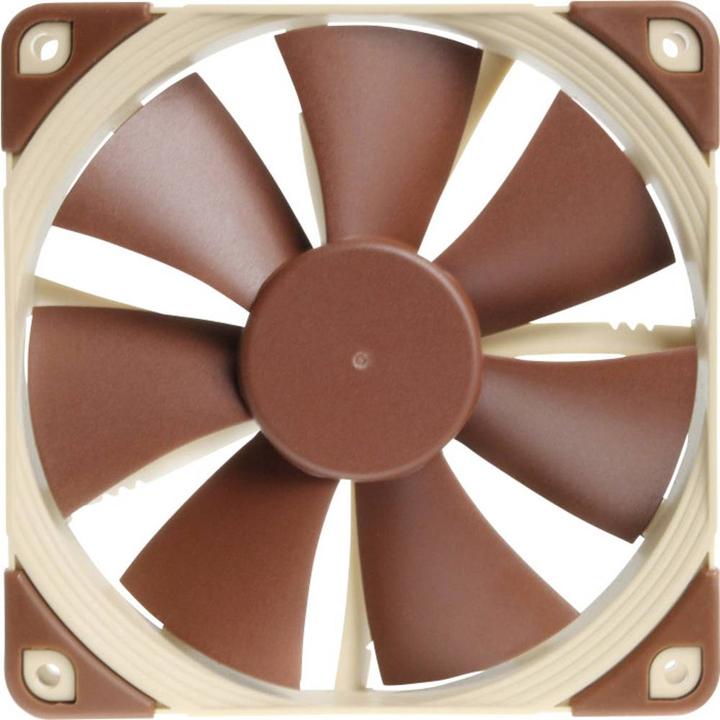

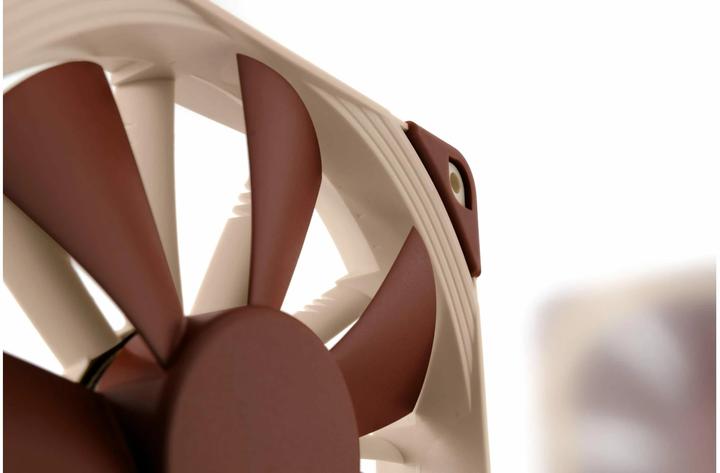

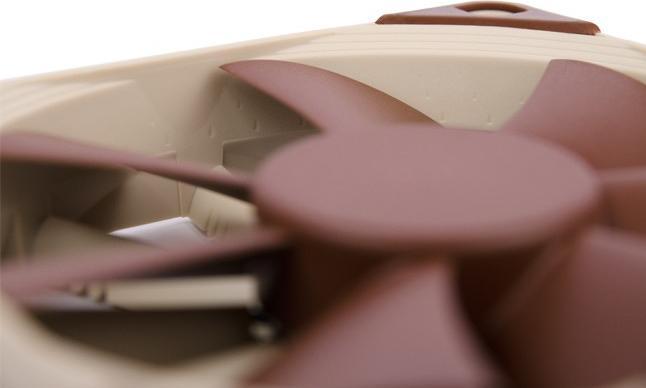

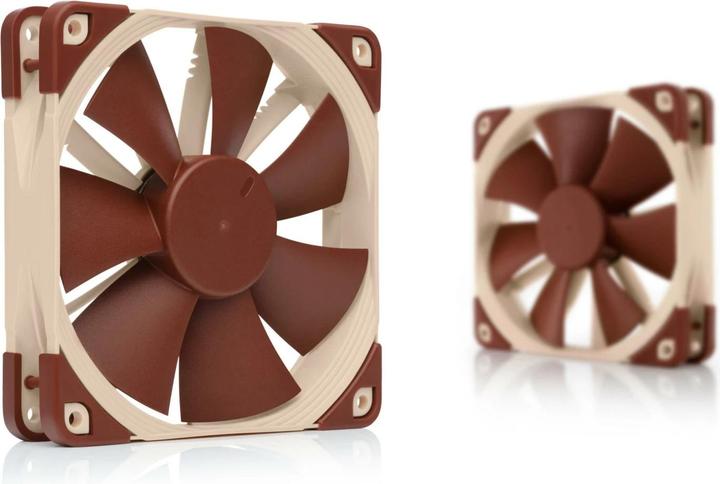

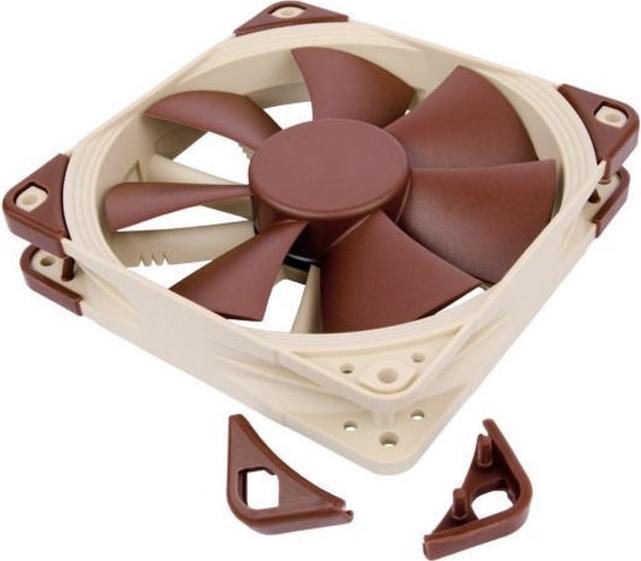

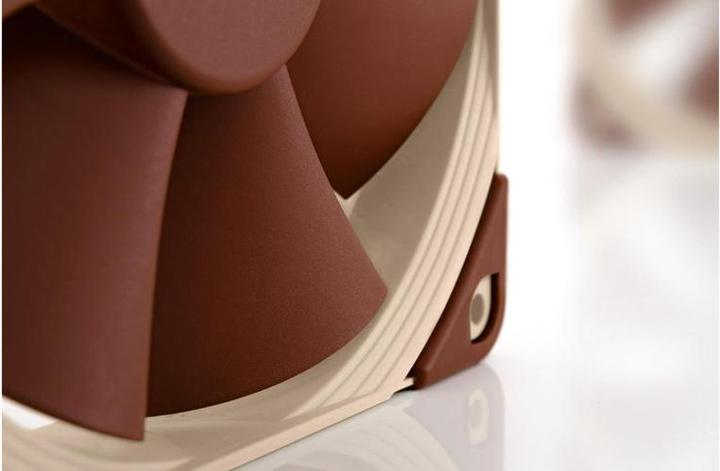

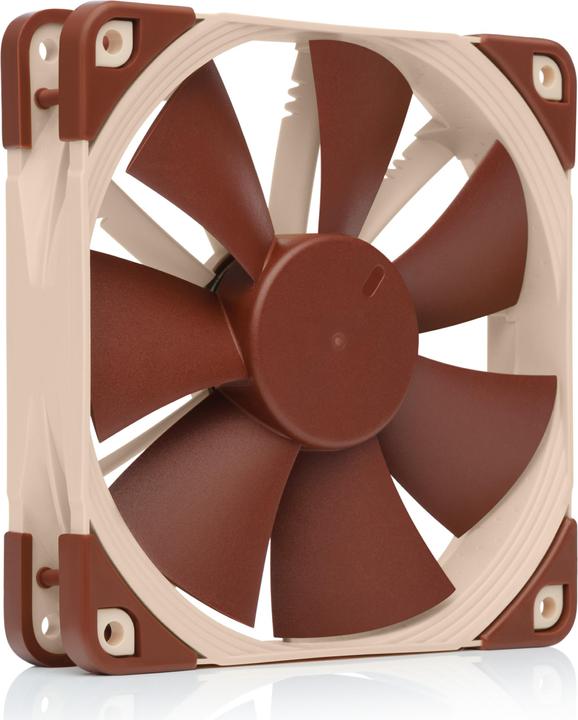

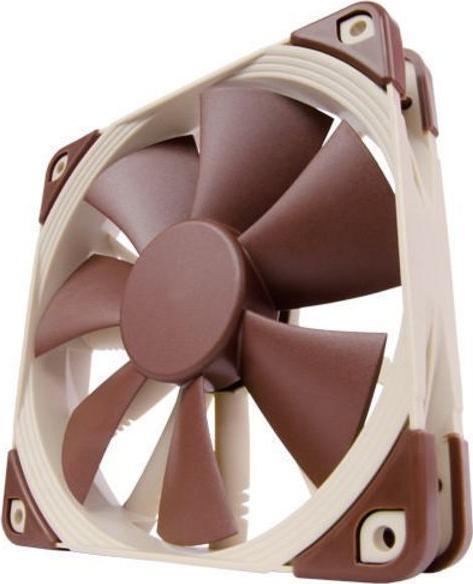

By combining eleven stator guide vanes with a specially developed seven-blade rotor, the Focused Flow System of the NF-F12 achieves excellent static pressure and focuses airflow for superior performance on heatsinks and radiators. At the same time, a range of advanced aerodynamic optimization measures, the second-generation ssO bearing, and Noctua's innovative PWM IC for fully automatic control ensure an impressive level of quiet operation.
Fan dimension | 120 mm |
Items per sales unit | 1 x |
power connector | 4-pin PWM |
Airflow | 93.40 m³/h |
Max. noise level | 22.40 dB |
LED colour | without LED |
Documents | |
Item number | 288033 |
Manufacturer | Noctua |
Category | PC fans |
Manufacturer no. | NF-F12 PVM |
Release date | 1.2.2012 |
Sales rank in Category PC fans | 112 of 2149 |
Colour | Brown |
Exact colour description | Brown |
Fan dimension | 120 mm |
PC fan type | PWM fan |
Fan type | Silent |
Max. Speed | 1500 RPM |
Max. noise level | 22.40 dB |
Airflow | 93.40 m³/h |
Static pressure | 2.61 mmH20 |
LED colour | without LED |
power connector | 4-pin PWM |
Power consumption (active) | 0.60 W |
input voltage | 12 V |
Electric current | 0.05 A |
Items per sales unit | 1 x |

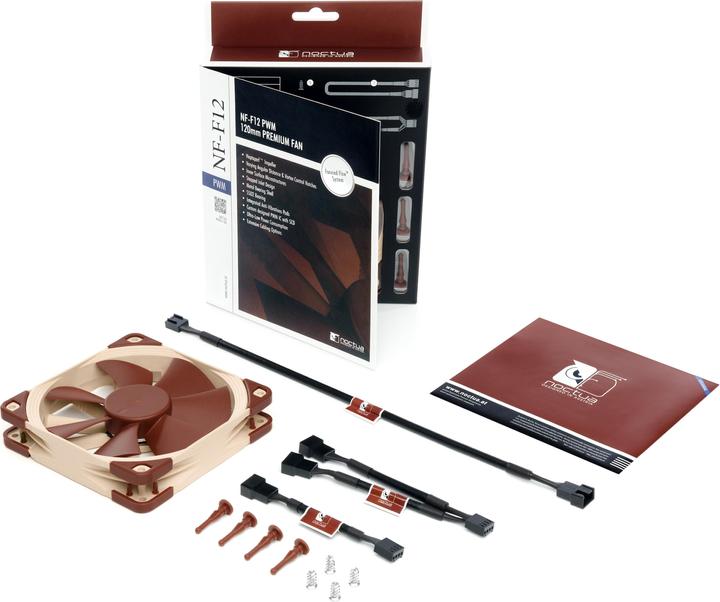

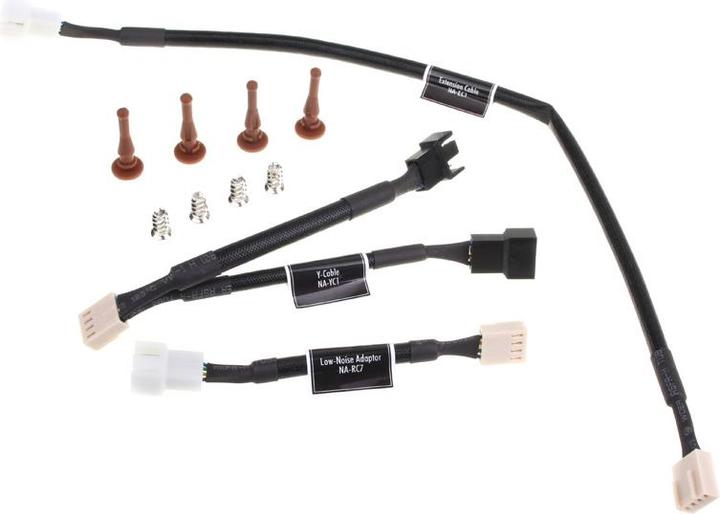

Scope of delivery | Screws |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Length | 25 mm |
Width | 120 mm |
Height | 120 mm |
Weight | 314 g |
Length | 21 cm |
Width | 15.50 cm |
Height | 3.50 cm |
Weight | 312 g |
