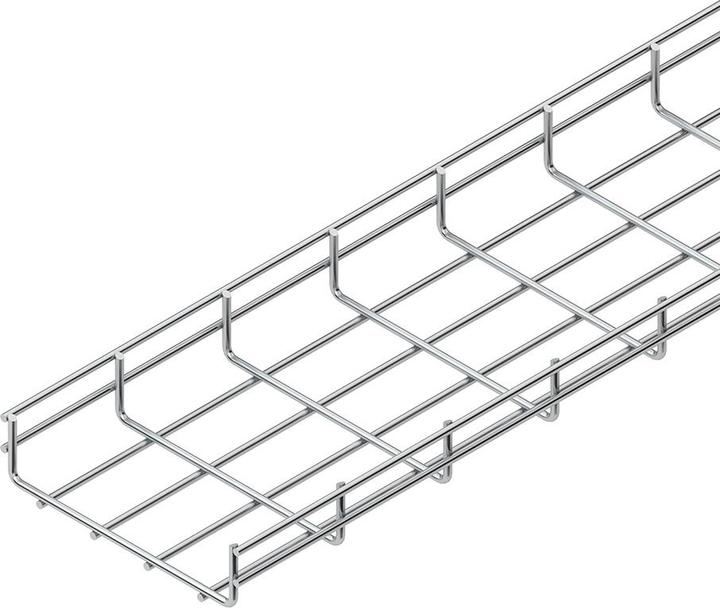

Niedax U-shaped mesh cable tray

Grid trough according to DIN EN 61537, U-shaped, made of steel wires, spot-welded, without connectors. Connectors MTSCO 6 must be ordered separately. For optimal loading of the grid trough, please refer to the specifications regarding the number and exact positioning of the connectors. Dimensions (approximate measurements) Nominal size H x W (inside): 54 x 300 mm Longitudinal wire diameter: 6.0 mm Distance between longitudinal wires: 50 mm Cross wire diameter: 6.0 mm Cross wire spacing: 100 mm Delivery length L: 3000 mm Usable cross-section: 15264 mm² Material: Steel, hot-dip galvanized according to DIN EN ISO 1461.
