Niedax NIE SPPGM30F Clamping claw
Delivered between Fri, 11.7. and Wed, 16.7.
More than 10 pieces in stock at supplier
More than 10 pieces in stock at supplier
Free shipping starting at 50.–
Product details

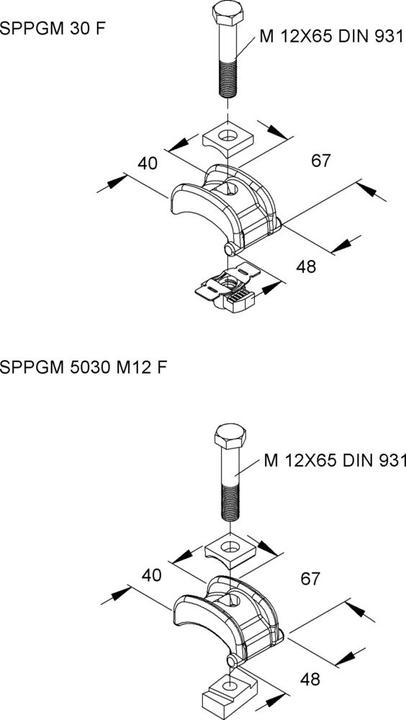

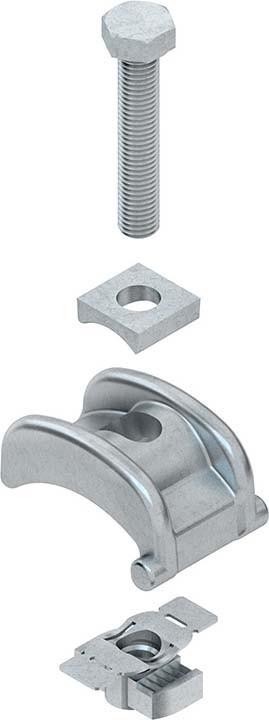

Tensioning clamp, complete with hexagon screw SK 12X65 DIN 931 and sliding nut with locking aid M 12, for securing suspensions to double T-beam profiles. The load capacity of the suspension depends on the type of C-profile rail, the flange thickness, and the flange width of the double T-beam profile. Suitable for: rail profile 2988 with slot width 18 mm, rail profile 2996Z with slot width 22 mm for flange thickness t: 0 - 25 mm. Screw tightening torque: 84 Nm. Material: steel, hot-dip galvanized according to DIN EN ISO 1461.
Item number | 23336363 |
Manufacturer | Niedax |
Category | Electronics supplies + Casing |
Manufacturer no. | SPPGM30F |
Release date | 16.11.2022 |
Manufacturer Type | Sppgm 30 f (ve2) |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 2 x |
Scope of delivery | Malleable cast iron clamping claw, NIEDAX SPPGM 30 F |
Length | 70 mm |
Width | 50 mm |
Height | 80 mm |
