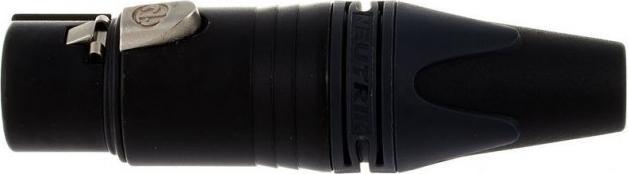

Neutrik XLR 3p. Connector Female

3-pole cable socket with black chrome housing and silver-plated contacts. The XX series is the next generation of the globally accepted standard for XLR cable connectors. The successor to the X series offers various new features that make the connector even more reliable. The cable connectors are now easier to assemble, the contacts are more robust, and the strain relief has also been improved.

Features & Benefits:

• Unique female cage contact reduces contact resistance and increases conductivity with less wear on the mating contact.
• Female contact with solder stop prevents solder from flowing into the mating area.
• Cable socket with ergonomic and larger locking latch for easier handling and operation.
• Additional grounding contact for optimal housing connection.
• Improved collet design further increases pull-out force and simplifies assembly.
• Cable sleeve with polyurethane bend protection protects the cable at the connector end from bending stress.
• Color coding and marking options using colored rings and strain relief sleeves.
• Slim and ergonomic design - high quality and handy.
• Robust, durable metal die-cast housing.
• Internal thread in the housing is protected against damage.
• Marked with the unique hologram - guarantees an original and genuine Neutrik product.

Product type: Connectors
Type: XLR connector
Number of poles: 3
Gender: Female
Contacts: Silver-plated
Connection type: Solder contacts
Housing: Zinc die-cast
Width: 19.2 mm
Height: 19.2 mm
Depth: 73.5 mm
Weight: 0.036 kg.
