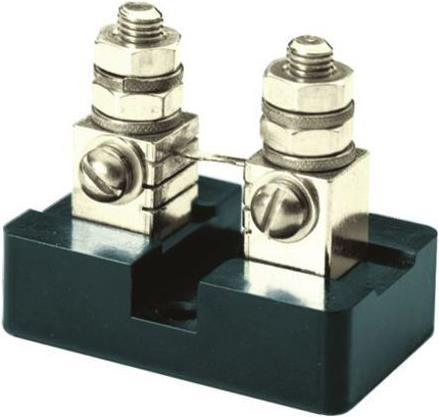

Murata DC Shunt 5A/50mV for DCA5

Current max. = 5 A
Output voltage = 50 mV
Shunt type = Digital
Accuracy = ±0.25 %
Temperature min. = -40 °C
Temperature max. = +60 °C

DC shunts, surface mount, 50 mV. Surface mount current shunts with 50 mV have been designed for measuring direct currents from 5 A to 1200 A. These precision shunts connect directly to the DC ammeters of the MPS DCA5-20PC series. Installation is straightforward: simply connect the load current circuit to the threaded pins of the shunt and the mV Kelvin outputs of the shunt to the input terminals of the digital ammeter. All models feature a robust phenolic resin base plate, providing insulation up to 750 V at the brass terminals of the shunt and allowing direct mounting on metal surfaces. Rated output of 50 mV under maximum load. High precision (±0.25 % accuracy). Manganin sensor element. Suitable for the DC ammeters of the DCA5-20PC series.
