MSI Z590-A PRO

LGA 1200, Intel Z590, ATX
8Ratings
BrandMore from MSI
Currently out of stock
Free shipping starting at 50.–

Product details

The PRO series helps users work more efficiently and productively. With many safety features and high-quality components, the motherboards of the PRO series not only provide an optimized workflow but also result in fewer error messages and greater durability.

Key specifications

Processor family
Celeron, Core i3 10th Gen, Core i5 10th Gen, Core i7 10th Gen, Core i9 10th Gen, Pentium
Memory type
DDR4-RAM
Number of memory modules (RAM)
4 x
Internal connection options
M.2 SATA (3x), S-ATA III (6x)
Mainboard features
Front panel audio connector
Documents
Technical data sheet.pdf
Item number
14733321

General information

Manufacturer
MSI
Category
Motherboards
Manufacturer no.
7D09-003R
Release date
18.1.2021
External links
Manufacturer's site (de)

Motherboard properties

Form factor
ATX
Socket
LGA 1200
Chipset
Intel Z590
Mainboard features
Front panel audio connector
Operating system compatibility
Windows 10
BIOS type
UEFI AMI

Processor

Processor family
Celeron, Core i3 10th Gen, Core i5 10th Gen, Core i7 10th Gen, Core i9 10th Gen, Pentium

Memory

Memory form factor
DIMM
Number of pins
288 x
Number of memory modules (RAM)
4 x
Max. memory (RAM)
128 GB
Memory chip
DDR4-3200
Max. RAM OC
5333 MHz
Supported memory speed
2133 MHz, 2666 MHz, 2933 MHz, 3200 MHz
Memory type
DDR4-RAM
RAM buffer
Unbuffered

Graphics properties

Video connections
DisplayPort (1x), HDMI (1x)
Multi-GPU technology
AMD 2-Way CrossFireX

Network

Network connections
RJ45 (1x)
Ethernet controller brand
Intel
Ethernet controller
Intel I225-V
Max. port speed
2.50 Gbit/s

Audio

Chip
Realtek ALC897
Audio channel
7.1 Channel

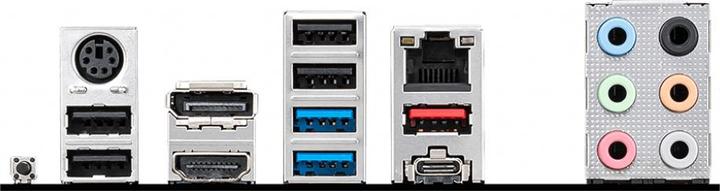

Audio Connections
Headphone output (1x)

Internal interfaces

Internal connection options
M.2 SATA (3x), S-ATA III (6x)
Expansion slot
PCI Express x16 (2x)
PCI express version (max.)
4
Number of fan connector
8

Power supply

Power connectors
24-pin ATX

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
HD Audio (8-channel)

Product dimensions

Length
244 mm
Width
305 mm
Height
65 mm
Weight
1000 g

Package dimensions

Length
34.90 cm
Width
27 cm
Height
6.60 cm
Weight
1.44 kg
