Product details

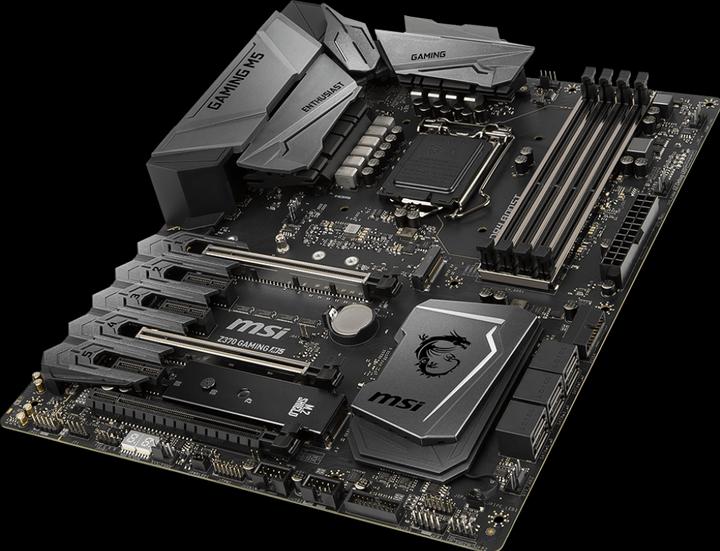

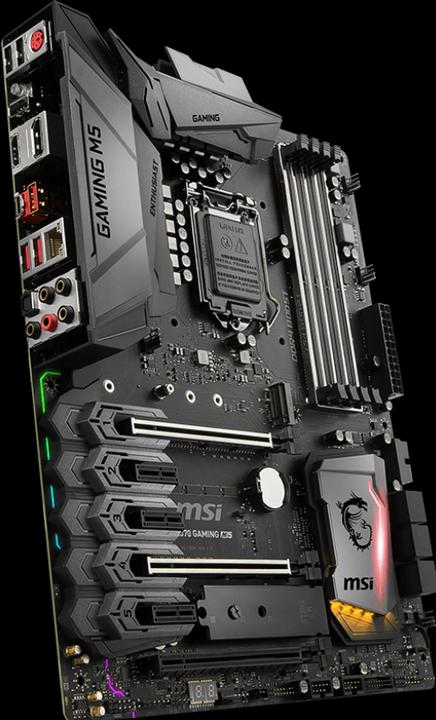

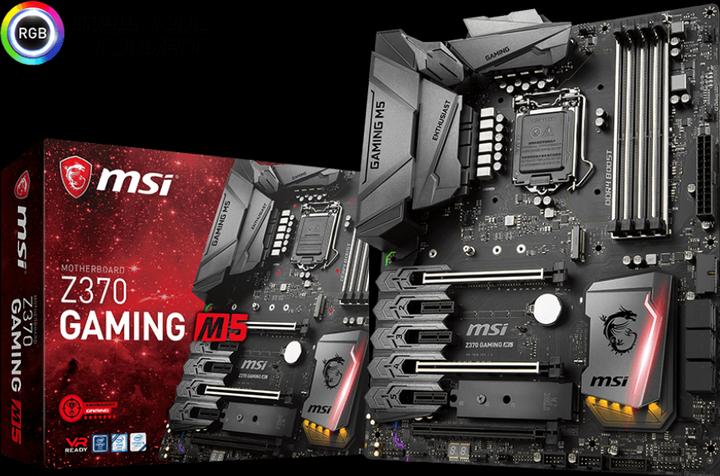

The MSI Z370 Gaming M5 is a powerful motherboard designed specifically for gaming enthusiasts. It supports the latest 8th generation Intel processors and offers a variety of features aimed at high performance and adaptability. With support for DDR4 SDRAM and speeds of up to 4000 MHz, it enables fast and efficient data processing. The ability to integrate up to 64 GB of RAM ensures that even the most demanding applications and games run smoothly. The motherboard is equipped with multiple interfaces, including M.2 and SATA III, to support a wide range of storage options, including RAID configurations. Additionally, the MSI Z370 Gaming M5 features a comprehensive cooling solution developed in collaboration with leading manufacturers to regulate temperature during intense gaming sessions. The Mystic Light technology allows for personalized customization of RGB lighting, enabling users to personalize the design of their system.
- Supports 8th generation Intel processors with LGA 1151 socket
- Maximum RAM capacity of 64 GB with support for DDR4 SDRAM
- Integrated support for RAID levels 0, 1, 5, and 10
- Killer E2500 Ethernet controller for optimized network performance
- Mystic Light technology for personalized RGB lighting customization.
Processor family | Core i3 8th Gen, Core i5 8th Gen, Core i7 8th Gen |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | S-ATA III (6x) |
Mainboard features | Front panel audio connector |
Documents | |
Item number | 6571882 |
Manufacturer | MSI |
Category | Motherboards |
Manufacturer no. | 7B58-003R |
Release date | 19.9.2017 |
Form factor | ATX |
Socket | LGA 1151 |
Chipset | Intel Z370 |
Mainboard features | Front panel audio connector |
Operating system compatibility | Windows |
BIOS type | UEFI |
Processor family | Core i3 8th Gen, Core i5 8th Gen, Core i7 8th Gen |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 64 GB |
Memory chip | DDR4-2133, DDR4-2400 |
Max. RAM OC | 3800 MHz |
Supported memory speed | 2133 MHz |
Memory type | DDR4-RAM |
RAM buffer | Unbuffered |

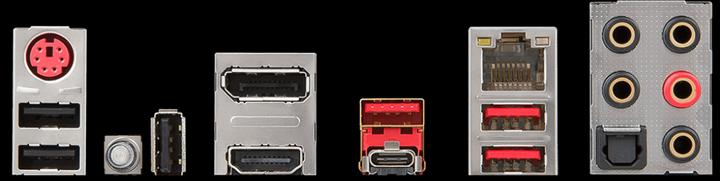

Video connections | HDMI (1x) |
Multi-GPU technology | AMD 3-Way CrossFireX, NVIDIA SLI |
Network connections | RJ45 (1x) |
Ethernet controller brand | Killer NIC |
Ethernet controller | Killer E2500 |
Max. port speed | 1 Gbit/s |
Chip | Realtec ALC1120 |
Audio channel | 7.1 Channel |
Audio Connections | Coaxial S/PDIF (1x) |
Internal connection options | S-ATA III (6x) |
Expansion slot | PCI Express x1 (1x), PCI Express x16 (3x) |
Number of fan connector | 4 |
Power connectors | 24-pin ATX, 8-pin ATX 12V |
CO₂-Emission | |
Climate contribution |
Scope of delivery | User manual |
Length | 304 mm |
Width | 243 mm |
Height | 305 mm |
Length | 35 cm |
Width | 27 cm |
Height | 8 cm |
Weight | 1.70 kg |
