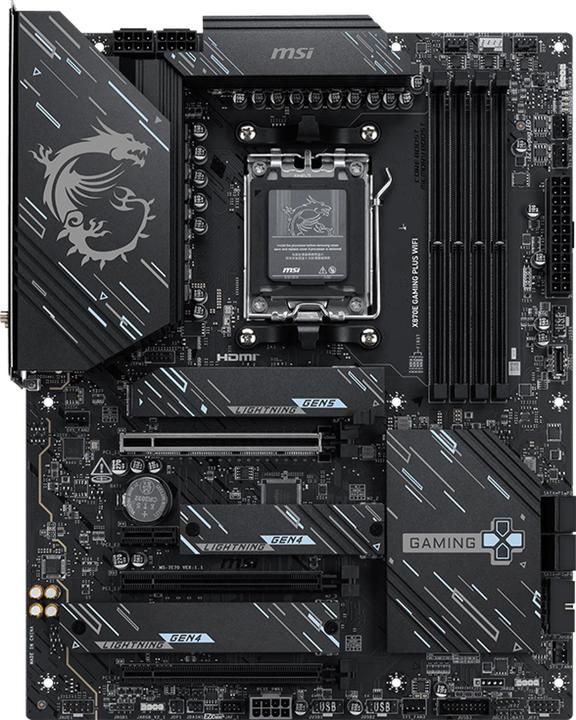

The MSI X870E GAMING PLUS WIFI is a powerful motherboard specifically designed for gaming enthusiasts and high-performance PC builds. It supports the latest AMD Ryzen processors from the 7000, 8000, and 9000 series and offers a variety of features that ensure high performance and flexibility. With a modern AM5 socket and support for DDR5 SDRAM up to 256 GB, this motherboard delivers impressive memory performance. The integrated Wi-Fi 7 technology provides fast and reliable wireless connections, while the M.2 interfaces allow for quick access to storage drives. The ATX format offers ample space for expansions and additional components, making it an ideal choice for gamers and PC builders who value performance and future-proofing.
Mainboard features | Clear CMOS Button, RGB header, Trusted Platform Module |
Wireless transmission | Bluetooth, Wi-Fi |
Number of memory modules (RAM) | 4x |
Memory type | DDR5 RAM |
Internal connection options | M.2 PCIe (3x), S-ATA III (4x) |
Item number | 58523937 |
Manufacturer | MSI |
Category | Motherboards |
Manufacturer no. | 7E70-001R |
Release date | 13.5.2025 |
Sales rank in Category Motherboards | 70 of 1012 |
External links |
Form factor | ATX |
Socket | AM5 |
Chipset | AMD X870E |
Mainboard features | Clear CMOS Button, RGB header, Trusted Platform Module |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 1 / 802.11b, Wi-Fi 2 / 802.11a, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n, Wi-Fi 5 / 802.11ac, Wi-Fi 6 / 802.11ax, Wi-Fi 7 / 802.11be |
Memory form factor | DIMM |
Number of memory modules (RAM) | 4x |
Max. memory (RAM) | 256 GB |
Memory chip | DDR5-5200, DDR5-5600 |
Max. RAM OC | 8200 MHz |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |
Video connections | HDMI (1x) |
Video connection version | HDMI 2.1 |
Network connections | RJ45 5 Gigabit Ethernet (1x) |
Max. port speed | 5 Gbit/s |
Chip | Realtek ALC120 |
Audio channel | 7.1 Channel |
Audio Connections | Headphone output (1x), Microphone connection (1x) |
RAID configuration | 0, 1, 10 |
Internal connection options | M.2 PCIe (3x), S-ATA III (4x) |
Expansion slot | PCI Express x16 (4x) |
PCI express version (max.) | 5 |
Number of fan connector | 7 |
USB ports | USB-A, USB-C |
Exact USB ports | USB-A 2.0 (4x), USB-A 3.2 Gen 1 (2x), USB-A 3.2 Gen 2 (2x), USB-C 3.2 Gen 2 (1x) |
Power connectors | 24-pin ATX, 2x 8-pin ATX 12V, 8-pin PCI-E |
Country of origin | China, Taiwan |
Manufacturer commitment | SBTi |
CO₂ emissions | 3102.95 kg |
Climate contribution | CHF 10.– |
Scope of delivery | Sata Cables, Screws |
Length | 243.84 mm |
Width | 304.80 mm |
Weight | 2024 g |
Length | 35 cm |
Width | 27.30 cm |
Height | 7.50 cm |
Weight | 2.01 kg |
How often does a product of this brand in the «Motherboards» category have a defect within the first 24 months?
Source: Digitec GalaxusHow many working days on average does it take to process a warranty claim from when it arrives at the service centre until it’s back with the customer?
Source: Digitec GalaxusHow often is a product of this brand in the «Motherboards» category returned?
Source: Digitec GalaxusMSI MAG X870E Gaming Plus Max WiFi: X870E for under 300 euros - is that possible? After MSI has already undercut 250 euros, "Yes." And apart from our drive measurements, it can even go "well", because the X870E Gaming Plus Max doesn't owe its slightly lower ranking to the obvious gaps in equipment, which are easily bearable against X870E competitors...
