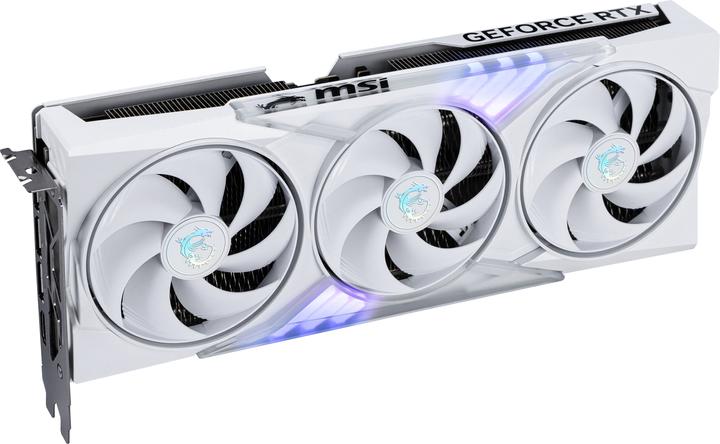

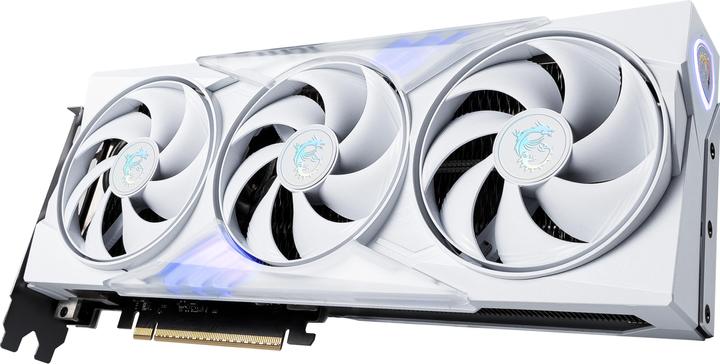

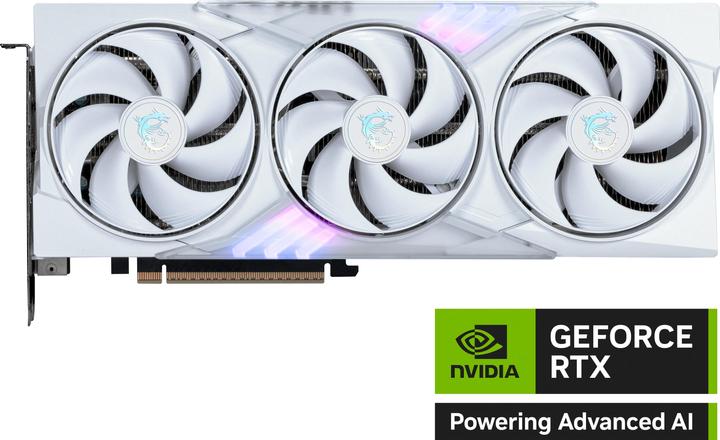

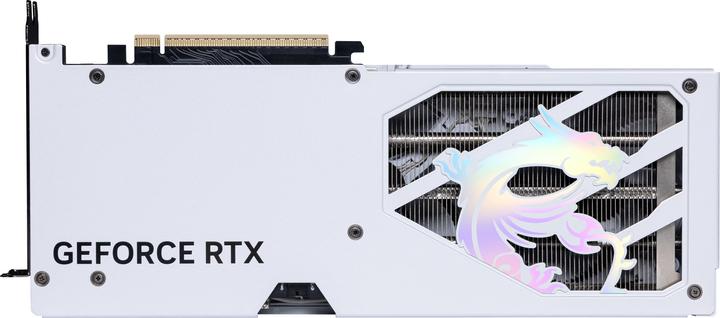

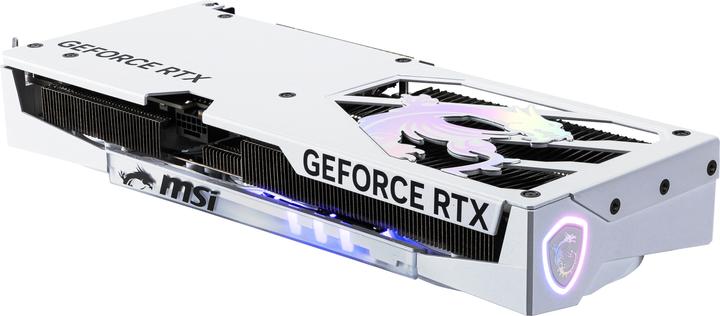

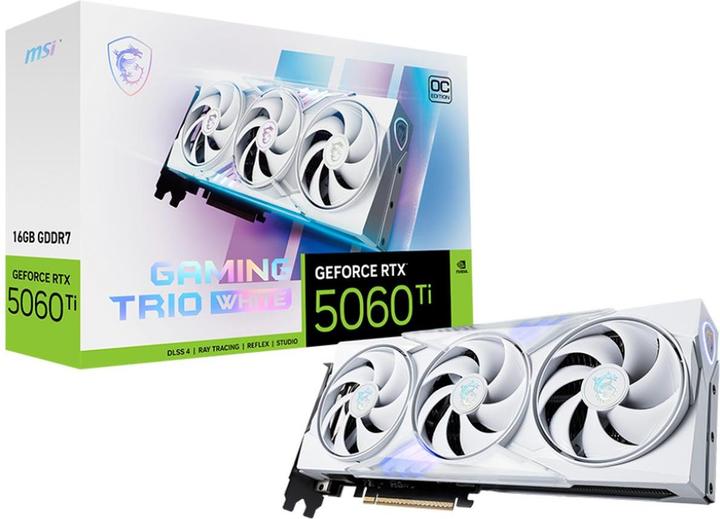

The MSI GeForce RTX 5060 Ti 16G Gaming Trio OC White is a powerful graphics card designed for demanding gaming and graphics-intensive applications. Equipped with an NVIDIA GeForce RTX 5060 Ti graphics processor and 16 GB of GDDR7 memory, it delivers impressive performance and high image quality. The card supports a maximum resolution of up to 7680 x 4320 pixels, making it ideal for high-resolution displays. With active cooling supported by three fans, it ensures efficient heat dissipation even during intense gaming sessions. The PCI Express x16 5.0 interface guarantees fast data transfer between the graphics card and the motherboard, while support for DirectX 12 Ultimate and NVIDIA G-SYNC provides a smooth and responsive gaming experience.
Length | 30 cm |
Number of shaders | 4608 x |
Graphics card model | GeForce RTX 5060 Ti |
Video memory clock | 28 GHz |
Max. connected monitors | 4 x |
Max. Video resolution | 7680 x 4320 pixels |
Power consumption | 180 W |
Item number | 57817330 |
Manufacturer | MSI |
Category | Graphics card |
Manufacturer no. | V535-025R |
Release date | 23.4.2025 |
Max. connected monitors | 4 x |
PCI Express version | PCIe 5.0 |
Max. Video resolution | 7680 x 4320 pixels |
Expansion card form factor | 2 slots |
LED colour | RGB |
Graphics chip (GPU) | nVidia GeForce |
Graphics card model | GeForce RTX 5060 Ti |
Clock frequency | 2407 MHz |
Boost frequency | 2647 MHz |
Number of shaders | 4608 x |
Video memory type | GDDR7 |
Storage capacity | 16 GB |
Video memory clock | 28 GHz |
Memory Interface | 128 bits |
Memory Bandwidth | 448 GB/s |
Graphics card cooling system | Active cooler |
Number of fans | 3 x |
DirectX version | 12 |
OpenGL version | 4.60 |
GPU microarchitecture | NVIDIA Blackwell |
GPU manufacturer technology | NVIDIA G-Sync |

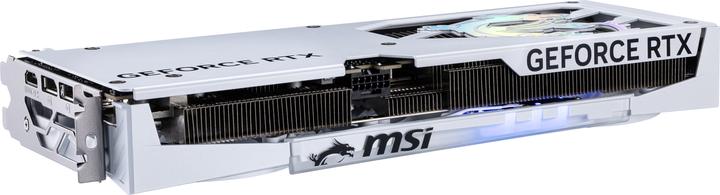

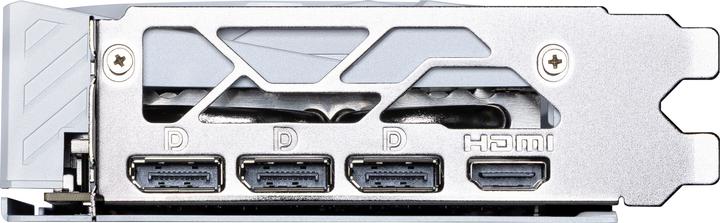

Video connections | DisplayPort (3x), HDMI (1x) |
HDMI version | 2.1b |
DisplayPort version | 2.1b |
Power consumption | 180 W |
Min. recommended system performance | 600 W |

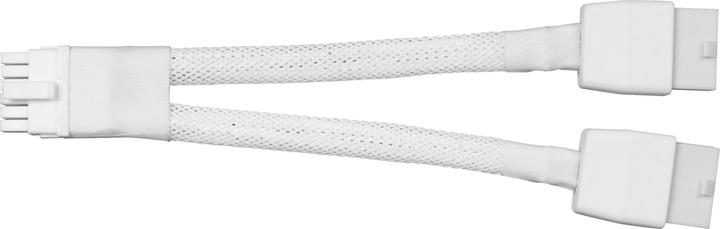

Power connectors | 12V-2x6 |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Length | 30 cm |
Width | 12.50 cm |
Height | 4.40 cm |
Length | 38.50 cm |
Width | 25 cm |
Height | 18 cm |
Weight | 1.30 kg |
How often does a product of this brand in the «Graphics card» category have a defect within the first 24 months?
Source: Digitec GalaxusHow many working days on average does it take to process a warranty claim from when it arrives at the service centre until it’s back with the customer?
Source: Digitec GalaxusHow often is a product of this brand in the «Graphics card» category returned?
Source: Digitec Galaxus
The MSI card is short at around 24 centimetres, but the cooler protrudes significantly beyond the board at the top and in width. As a result, the design occupies 1.2 centimetres more than the usual two slots and is also 2.7 centimetres higher than the slot bracket. The Gaming OC is one of the few RTX-5060 variants that requires a 16-pin "12V-2x6" connection from the power supply...
