MSI A520M Pro

AM4, AMD A520, mATX
Ratings
BrandMore from MSI
Delivered between Wed, 4.6. and Sat, 7.6.
More than 10 items in stock at supplier

Product details

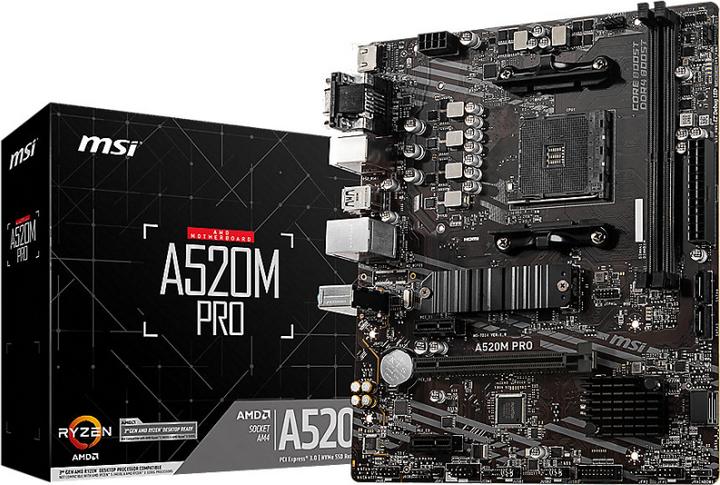

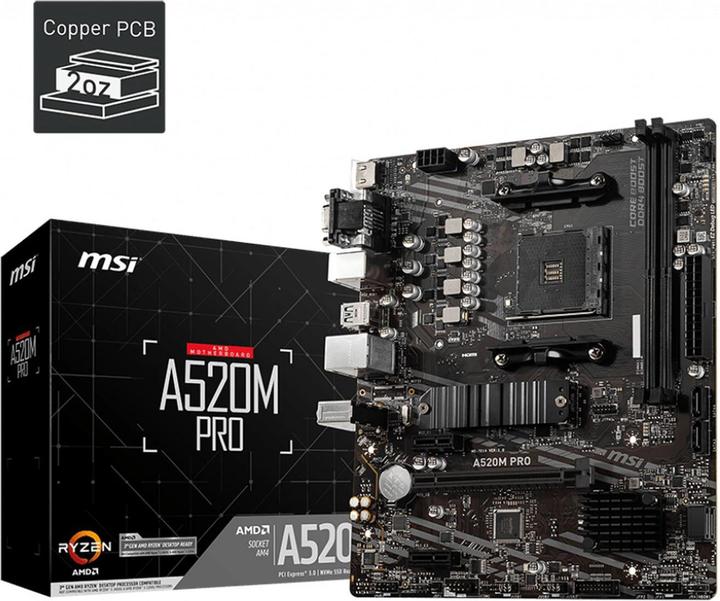

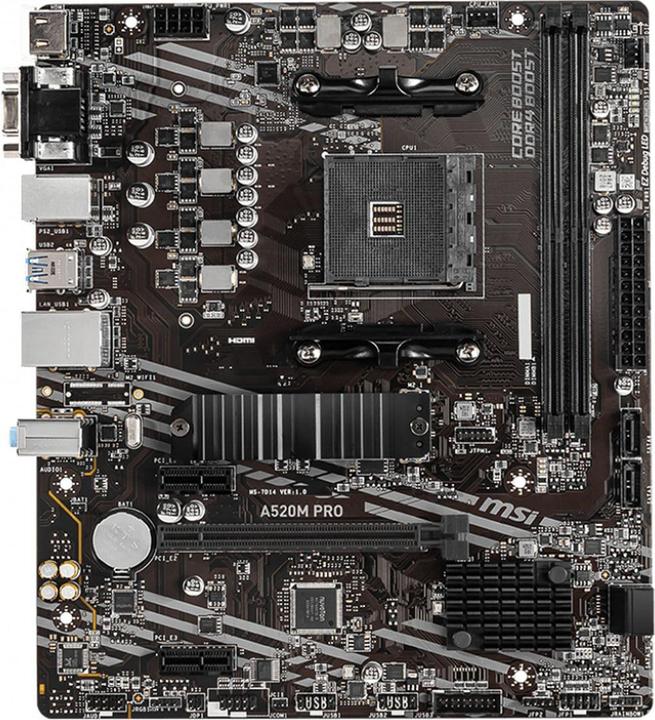

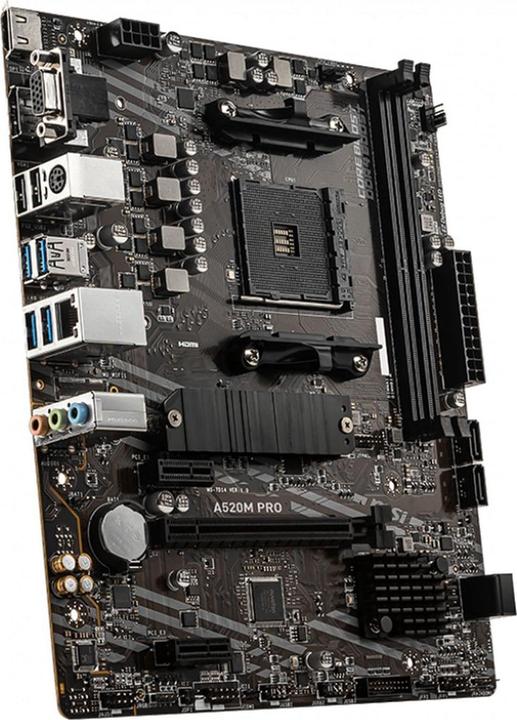

The MSI A520M PRO is a Micro-ATX motherboard for AMD Ryzen processors of the 3rd generation, Ryzen processors with Radeon Graphics of the 2nd generation, and Ryzen processors of the 2nd generation. It features the AMD A520 chipset and supports DDR4 memory with optimal speed.

The motherboard offers a PCIe 3.0 x16 slot for a graphics card and two PCIe 3.0 x1 slots for other expansion cards. Additionally, there is an M.2 slot for data storage as well as six SATA slots for additional storage devices.

The MSI A520M PRO supports Gigabit Ethernet and is equipped with a Realtek 8111H network controller. Furthermore, there are multiple USB ports, including 6 USB 3.2 Gen 1 ports and 6 USB 2.0 ports.

Key specifications

Processor family
AMD 3000 Series
Memory type
DDR4-RAM
Number of memory modules (RAM)
2 x
Internal connection options
mSATA (4x), USB 2.0 Header (2x)
Mainboard features
Front panel audio connector
Item number
16178967

General information

Manufacturer
MSI
Category
Motherboards
Manufacturer no.
7D14-005R
Release date
23.5.2024
External links
Manufacturer's site (de)

Motherboard properties

Form factor
Micro ATX (mATX)
Socket
AM4
Chipset
AMD A520
Mainboard features
Front panel audio connector
Operating system compatibility
Windows 10
BIOS type
UEFI AMI
Wi-Fi standard
Wi-Fi 1 / 802.11b, Wi-Fi 2 / 802.11a, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n, Wi-Fi 5 / 802.11ac, Wi-Fi 6 / 802.11ax

Processor

Processor family
AMD 3000 Series

Memory

Memory form factor
DIMM
Number of memory modules (RAM)
2 x
Max. memory (RAM)
64 GB
Memory chip
DDR4 RAM
Max. RAM OC
4600 MHz
Supported memory speed
1866 MHz, 2133 MHz, 2400 MHz, 2800 MHz, 2933 MHz, 3000 MHz, 3200 MHz, 4000 MHz, 4300 MHz, 4800 MHz, 5000 MHz, 5200 MHz, 5600 MHz, 5800 MHz, 6000 MHz, 6200 MHz, 6400 MHz
Memory type
DDR4-RAM
RAM buffer
Unbuffered

Graphics properties

Video connections
DisplayPort (1x), HDMI (2x)
Video connection version
HDMI 2.1

Network

Network connections
RJ45 (1x)
Ethernet controller brand
Realtek
Ethernet controller
Realtek RTL8111H
Max. port speed
1 Gbit/s

Audio

Chip
Realtek ALC892
Audio channel
7.1 Channel
Audio Connections
Audio In

Data storage

RAID configuration
0, 1, 10

Internal interfaces

Internal connection options
mSATA (4x), USB 2.0 Header (2x)
Expansion slot
PCI Express x1 (Gen 3) (1x), PCI Express x16 (3x)
PCI express version (max.)
3
Number of fan connector
1

Further connections

USB ports
USB-A
Exact USB ports
USB-A 2.0 (2x), USB-A 3.2 Gen 1 (1x)

Power supply

Power connectors
8-pin ATX 12V

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
2 x Serial ATA cable

Product dimensions

Length
210 mm
Width
244 mm
Height
65 mm
Weight
698 g

Package dimensions

Length
27 cm
Width
26 cm
Height
6 cm
Weight
780 g
