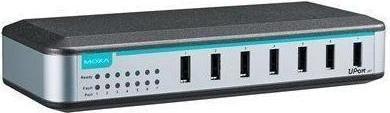

Moxa UPORT 207 - 7-port entry-level USB hub, adaptor included

The UPort series of USB hubs is industrial-grade and designed with the ruggedness and reliability needed for industrial applications. Each port has ESD Level 4 protection and provides Super-Speed USB 3.2 data rates up to 5 Gbps, even for heavy-load applications. The UPort Series includes models with dual power inputs, DIN-rail mounting options, and wide temperature models that operate reliably even in harsh conditions.

7-port entry-level USB hub, adaptor included.

USB Interface

• Speed: 12 Mbps, 480 Mbps
• USB Connector: USB Type B
• USB Standards: USB 1.1/2.0 compliant
• Number of USB Ports: 7

Power Parameters

• Input Voltage: 12 to 40 VDC
• Input Current: 2.17 A @ 12 VDC

Physical Characteristics

• Housing: Polycarbonate (PC)
• Dimensions: 80 x 35 x 185 mm (3.15 x 1.38 x 7.28 in)
• Weight:

Packaged: 890 g (1.96 lb)
Product only: 875 g (1.93 lb)

Environmental Limits

• Operating Temperature: 0 to 60°C (32 to 140°F)
• Storage Temperature (package included): -20 to 75°C (-4 to 167°F)

Standards and Certifications

• EMC: EN 55032/24
• EMI: CISPR 32, FCC Part 15B Class A
• EMS:

IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 2 kV
IEC 61000-4-5 Surge: Power: 1 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 0 V/m
IEC 61000-4-8 PFMF

• Environmental Testing:

IEC 60068-2-1
IEC 60068-2-3

• Freefall: IEC 60068-2-34

Declaration

• Green Product: RoHS, CRoHS, WEEE

MTBF

• Time: 1,059,201 hrs
• Standards: Telcordia (Bellcore), GB.
