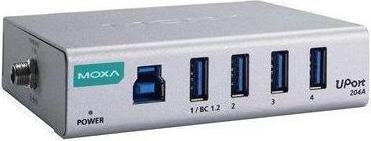

Moxa UPORT 204A - 4-port general-purpose USB 3.2 hubs

The UPort series of USB hubs is industrial-grade and designed with the ruggedness and reliability needed for industrial applications. Each port has ESD Level 4 protection and provides Super-Speed USB 3.2 data rates up to 5 Gbps—even for heavy-load applications. The UPort Series includes models with dual power inputs, DIN-rail mounting options, and wide temperature models that operate reliably even in harsh conditions.

4-port general-purpose USB 3.2 hubs

USB Interface

• USB Standards

USB 1.1/2.0 compliant
USB 3.2 Gen 1

• Speedundnbsp;5 Gbps
• USB Connector

UFP: type B
DFP: type A

• No. of USB Portsundnbsp;5 (UFP: 1, DFP 4)

Power Parameters

• Input Voltageundnbsp;No. of power inputs: 1, 12 VDC
• Power Connectorundnbsp;Power jack
• Power Consumptionundnbsp;2.65 A @ 12 VDC
• Reverse Polarity Protectionundnbsp;Supported
• Output Power Rating

Port 1: 900 / 1500 mA @ 5 VDC (BC 1.2 compatible)
Rest of ports: 900 mA @ 5 VDC

Physical Characteristics

• Housingundnbsp;Metal
• Dimensionsundnbsp;85 x 27 x 100 mm (3.35 x 1.06 x 3.94 in)
• Weightundnbsp;208 g (0.46 lb)
• Installationundnbsp;DIN-rail mounting (with optional kit), Wall mounting (with optional kit)

Environmental Limits

• Operating Temperatureundnbsp;0 to 60°C (32 to 140°F)undnbsp;
• Storage Temperatureundnbsp;-20 to 75°C (-4 to 167°F)
• Ambient Relative Humidityundnbsp;5 to 95% (non-condensing)

Standards and Certifications

• EMCundnbsp;EN 55032/35
• EMIundnbsp;CISPR 32, FCC Part 15B Class A
• EMS

IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 1 kV
IEC 61000-4-5 Surge: Power: 1 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m
IEC 61000-4-8 PFMF

• Safetyundnbsp;EN 62368-1, UL 62368-1, KC
• Environmental Testingundnbsp;IEC 60068-2-1
• Freefallundnbsp;IEC 60068-2-34

Declaration

• Green Productundnbsp;RoHS, CRoHS, WEEE

MTBF

• Standardsundnbsp;Telcordia (Bellcore), GB
• Timeundnbsp;2,678,801 hrs.
