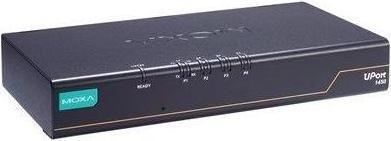

Moxa UPORT 1450I-G2 - USB to 4-port RS-232422485 converter with 2 kV insulation protection

Ratings
Delivered between Thu, 10.7. and Tue, 19.8.

Product details

Moxa's UPort USB to Serial Converters provide computers with high-performance, industrial-grade connections for up to 16 serial devices over a single USB port. A wide range of converters are available with features such as SuperSpeed USB 3.2 and Hi-Speed USB 2.0, advanced UARTs for high serial performance, COM port mapping, fixed-base COM functionality, and more.

This model is a USB to 4-port RS-232/422/485 converter with 2 kV isolation protection and an operating temperature range of 0 to 60°C.

USB Interface:

  • USB Standards: USB 3.2 Gen 1, USB 1.1/2.0 compliant
  • Speed: 5 Gbps, 480 Mbps, 12 Mbps
  • Number of USB Ports: 1
  • USB Connector: USB Type B

Serial Interface:

  • Connector: DB9 male
  • Number of Ports: 4
  • Serial Standards: RS-232/422/485
  • FIFO: 512 bytes
  • Baudrate: 50 bps to 921.6 kbps (supports non-standard baudrates)
  • Parity: None, Even, Odd, Space, Mark
  • Data Bits: 5, 6, 7, 8
  • Stop Bits: 1, 1.5, 2
  • Flow Control: RTS/CTS, XON/XOFF
  • RS-485 Data Direction Control: Automatic Data Direction Control (ADDC)
  • Pull High/Low Resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms
  • Terminator for RS-485: 120 ohms
  • Surge: 0.5 kV
  • Isolation: 2 kV (I models)

Serial Signals:

  • RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422: Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w: Data+, Data-, GND

Serial Software Features:

  • Windows Drivers: Windows 11, 10, 8.1, 8, and 7; Windows Server 2022, 2019, 2016, 2012 R2, 2012, and 2008 R2
  • Linux Drivers: Kernel 6.x, 5.x, and 4.x
  • Mac Drivers: macOS version (Intel 64): 13, 12, 11, and 10.1x
  • Virtual Machine: VMware Fusion (Windows on macOS 13, 12, 11, 10.1x, Intel 64), VMWare ESXi (Linux kernel 4), Parallels Desktop (Windows on macOS 13, 12, 11, 10.1x, Intel 64)
  • Arm®-based Platform Support: Linux kernel 6.x, 5.x, and 4.x
  • Android API: Android 3.1.x and later

Power Parameters:

  • Input Voltage: 5 VDC by USB bus power or 12 to 48 VDC by external power adaptor
  • Input Current: 445 mA @ USB 2.0, 633 mA @ USB 3.2, 340 mA @ 12...
