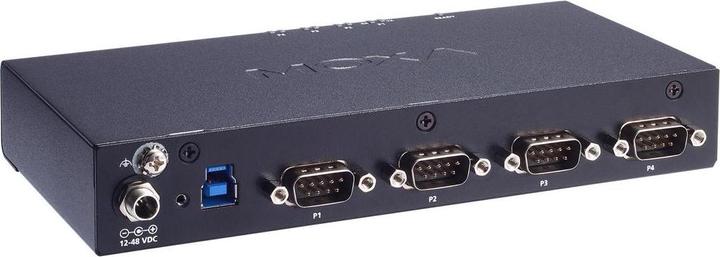

Moxa UPORT 1410-G2 - USB to 4-port RS-232 converter, 0 to 60C operating temperature

Introduction
The UPort 1400-G2 Series USB-to-serial converters are ideal for laptop or workstation computers that need serial port expansion. They are essential for computers that need to connect different serial devices in the field or require separate interface converters for devices without a standard COM port or DB9 connector. The computers come with a USB cable that has a latch and screw lock for a more secure connection between the UPort and your computer. The UPort 1400-G2 Series converts from USB to RS-232/422/485. All products are compatible with legacy serial devices and can be used with instrumentation and point-of-sale applications.

UPort 1410-G2
UPort 1400-G2 Series
USB to 4-port RS-232 converter, 0 to 60°C operating temperature

USB Interface
USB Standards: USB 3.2 Gen 1, USB 1.1/2.0 compliant
Speed: 5 Gbps, 480 Mbps, 12 Mbps
No. of USB Ports: 1
USB Connector: USB Type B

Serial Interface
Connector: DB9 male
No. of Ports: 4
Serial Standards: RS-232
FIFO: 512 bytes
Baudrate: 50 bps to 921.6 kbps (supports non-standard baud rates)
Parity: None, Even, Odd, Space, Mark
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Flow Control: RTS/CTS, XON/XOFF
RS-485 Data Direction Control: Automatic Data Direction Control (ADDC)
Pull High/Low Resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms
Terminator for RS-485: 120 ohms
Surge: 0.5 kV
Isolation: 2 kV (I models)

Serial Signals
RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422: Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w: Data+, Data-, GND

Serial Software Features
Windows Drivers: Windows 11, 10, 8.1, 8 and 7, Windows Server 2022, 2019, 2016, 2012 R2, 2012 and 2008 R2
Linux Drivers: Kernel 6.x, 5.x and 4.x
Mac Drivers: macOS version (Intel 64): 13, 12, ...
