Moxa ICF-1170I-M-ST-T - CANbus to fiber converter, multi-mode, ST connector, -40 to 85C operating temper

Ratings
Delivered between Wed, 20.8. and Tue, 23.9.
free shipping

Product details

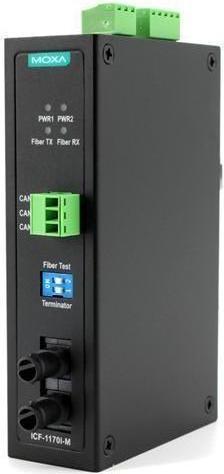

Moxa Industrial CAN Bus to Fiber Converter with Multi-Mode ST (Extended Temperature Model)

Description
The ICF-1170I series CAN Bus to Fiber Converters are used to convert CAN signals from copper to fiber. The converters feature optical isolation of 2 kV for the CAN Bus system and two power inputs with alarm contact relays to ensure that your CAN Bus system remains online.

Fiber Test Mode
The Fiber Test Mode can be used to test the fiber optic cable between two ICF-1170I units, providing a simple way to determine if the fiber optic cable is transmitting data correctly. In Fiber Test Mode, the fiber transceiver (TX) continuously emits a data signal, and the "Fiber TX" LED lights up. When the ICF-1170I fiber transceiver (RX) on the other side of the connection receives the data signal from the TX side, the "Fiber RX" LED lights up.

Features

  • Transmits up to 2 km over fiber
  • Converts CAN signals to fiber and fiber to CAN signals
  • Baud rate up to 1 Mbps

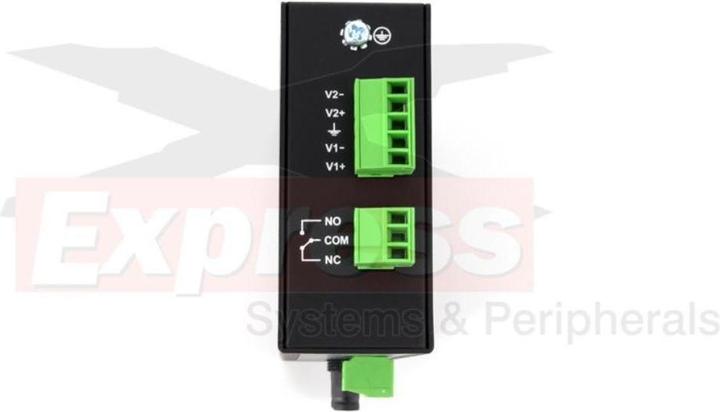

  • Two power inputs for redundancy
  • DIP switch for 120 Ω termination resistor
  • DIP switch for fiber test mode

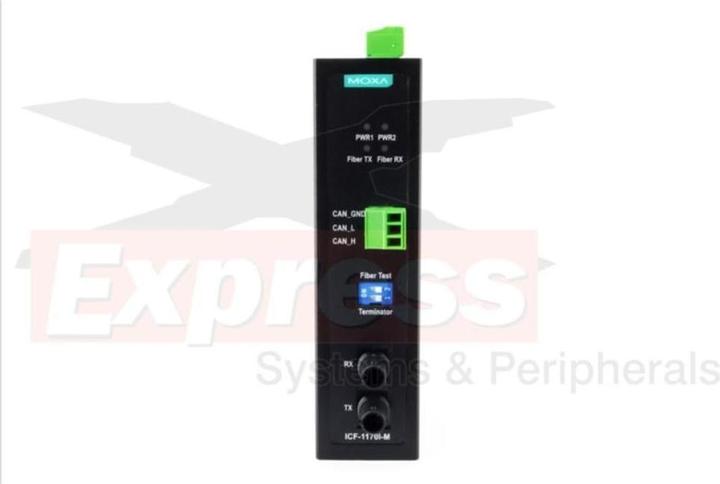

  • LEDs for Fiber TX, Fiber RX, Power 1, Power 2
  • Extended temperature model available for environments from -40 to 85 °C
  • Fully compliant with ISO 11898 standard.

Key specifications

Item number
46493118

General information

Manufacturer
Moxa
Category
Converters
Manufacturer no.
ICF-1170I-M-ST-T
Release date
13.6.2024

Voluntary climate contribution

CO₂-Emission
Climate contribution

30-day right of return
24 Months Warranty (Bring-in)
