Monacor Speaker DIY kit

Speaker Kit CT-193

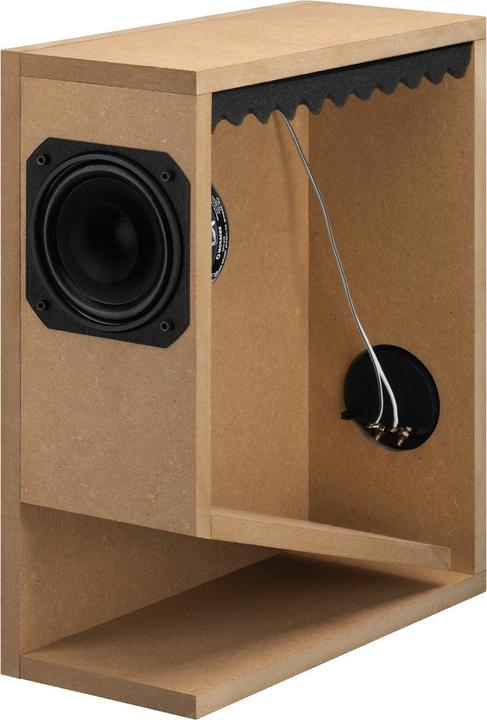

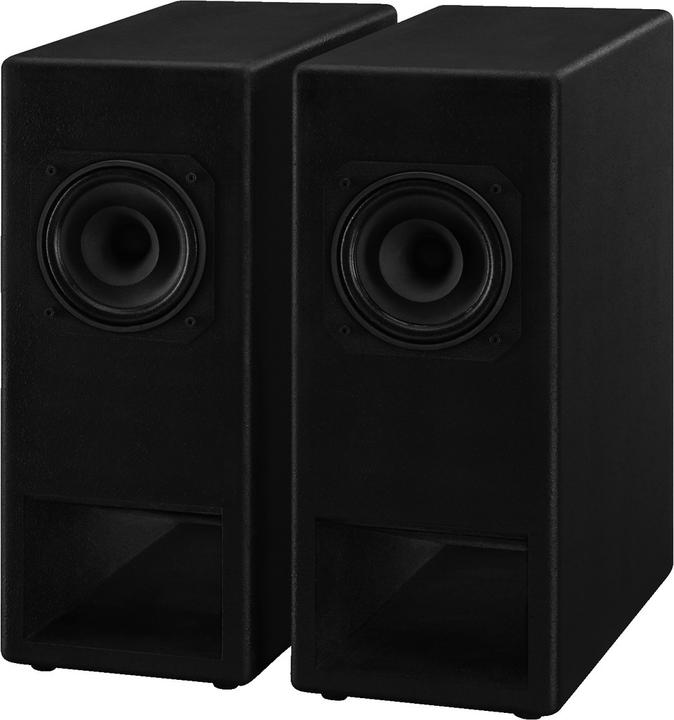

The CT-193 "Cheap Trick" speaker kit is a high-quality pair of bookshelf speakers based on the bass reflex principle with a horn throat. It features the proven Hi-Fi full-range speaker SPH-60X from MONACOR. This full-range driver impresses with incredible bass reproduction, a wide frequency range (50-20,000 Hz), and offers maximum sound and performance. The optimally pre-fabricated kit includes all necessary components as well as an assembly manual. All you need to assemble the components is a soldering iron, a screwdriver, and side cutters. The wood used is untreated and can be painted according to your preference.

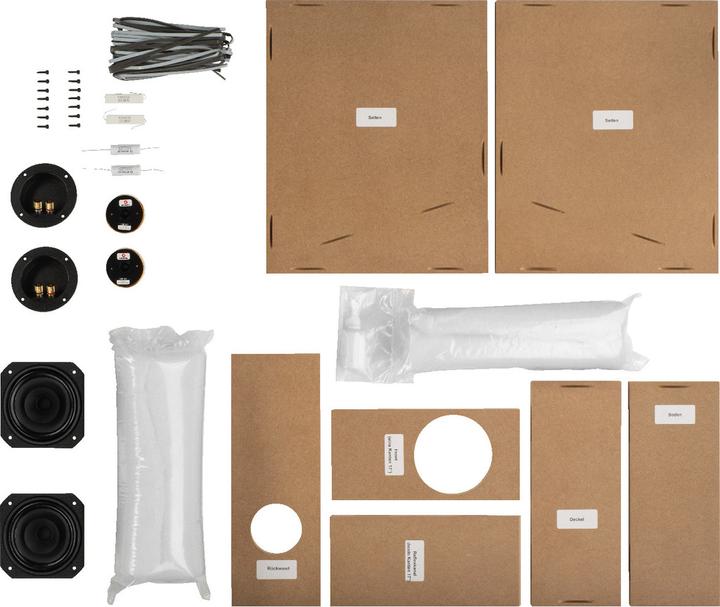

The contents of the CT-193 kit include:

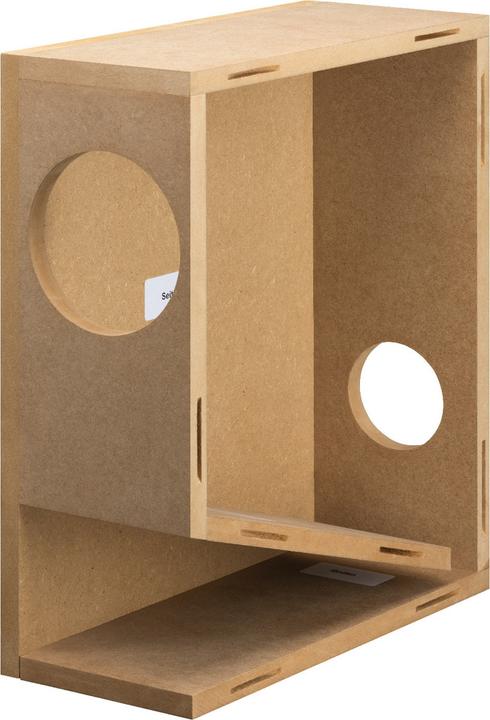

• 4 x Side panels, 428 x 350 mm
• 4 x Top/Bottom panels, 140 x 350 mm
• 2 x Back panels, 140 x 390 mm
• 2 x Front panels, 140 x 296 mm (one edge 17°)
• 2 x Reflex channels, 140 x 300 mm (both edges 17°)
• 2 x Hi-Fi full-range speakers SPH-60X, 30 W, 8 Ω
• 2 x Speaker coil LSIP-100, 1.0 mH
• 2 x Speaker capacitor MKTA-68, 6.8 µF, 250 V
• 2 x High-load resistor LSR-100/20, 10 Ω, 20 W

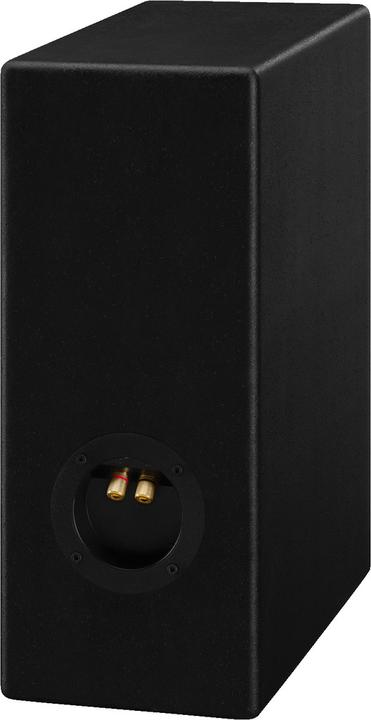

• 2 x Speaker screw terminals ST-960GM
• 2 x Bags of damping wool
• 2 x LS foam sealing strips of 1.5 m made from MDM-5
• 2 x Strips of convoluted foam
• 2 x Speaker cables
• Wood glue, mounting screws, assembly manual

For complete technical specifications, see individual items.
