Monacor RF-Explorer/3

Analyzer
Ratings
BrandMore from Monacor
Delivered between Thu, 28.8. and Thu, 11.9.
free shipping

Product details

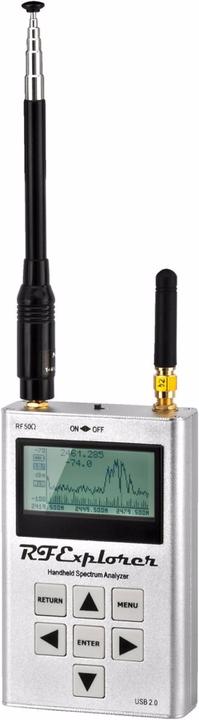

RF spectrum analyser, 15-2,700 MHz, in a compact aluminium housing with two antennas (SMA connection) for the different frequency ranges. Also to be used for preventing frequency collisions when setting up radio links in the specified frequency range.

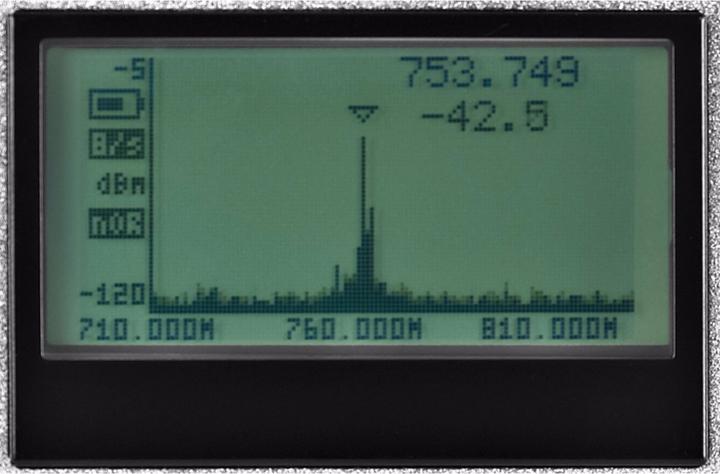

  • Real-time monitoring of the frequency range used with indication of frequency and level (dBm and dBµV)
  • Backlit high-contrast graphic display (128 x 64 pixels)
  • Automarker function and manual marker positioning for setting an individual carrier frequency

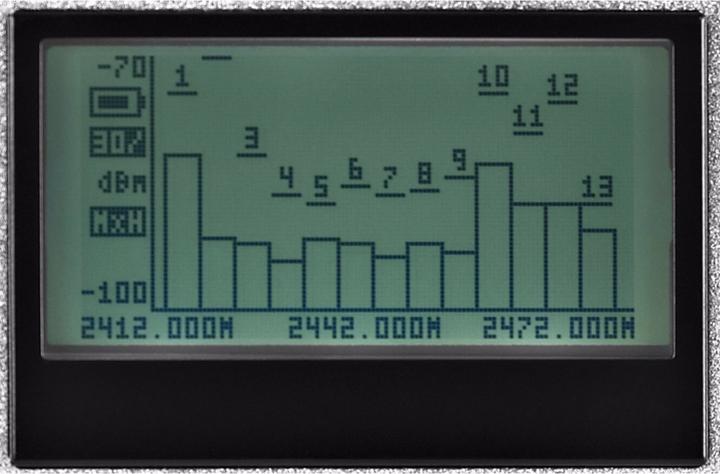

  • Special Wi-Fi analyser with display of 13 WLAN channels
  • Max hold function for a reliable detection of ultra-short RF carrier frequencies (additional modes: normal, max., average, overwrite)
  • Mini USB 2.0 interface for connection to a PC or laptop as well as for charging the built-in rechargeable lithium polymer battery (1,000 mAh)

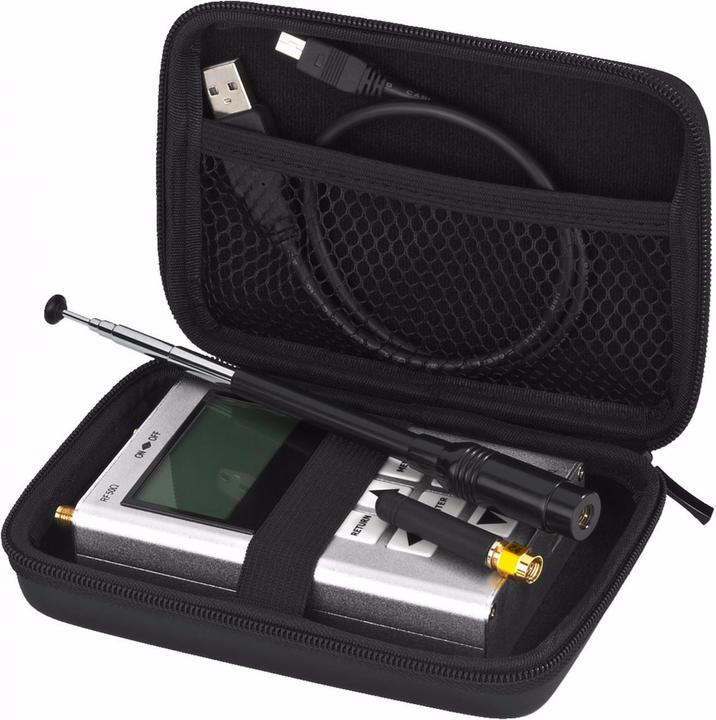

  • Supplied with transport bag and USB cable
  • Client software with real-time analysis for Windows XP/Vista/Win7/Win8.x/Win10/Windows Server (32-bit or 64-bit version) can be downloaded at monacor.com
  • Dimensions: 71 x 122 x 25 mm
  • Weight: 210 g.

Key specifications

measurements
Rate
Item number
18251556

General information

Manufacturer
Monacor
Category
Metrology
Manufacturer no.
RF-EXPLORER/3
Release date
7.1.2022

Metrology properties

Type of measuring technique
Analyzer
measurements
Rate
Temperature range
0° - 40° C

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Carrying bag, USB cable

Product dimensions

Length
71 mm
Width
25 mm
Height
122 mm
Weight
210 g

Package dimensions

Length
16.20 cm
Width
11.60 cm
Height
12.30 cm
Weight
445 g
