Product details

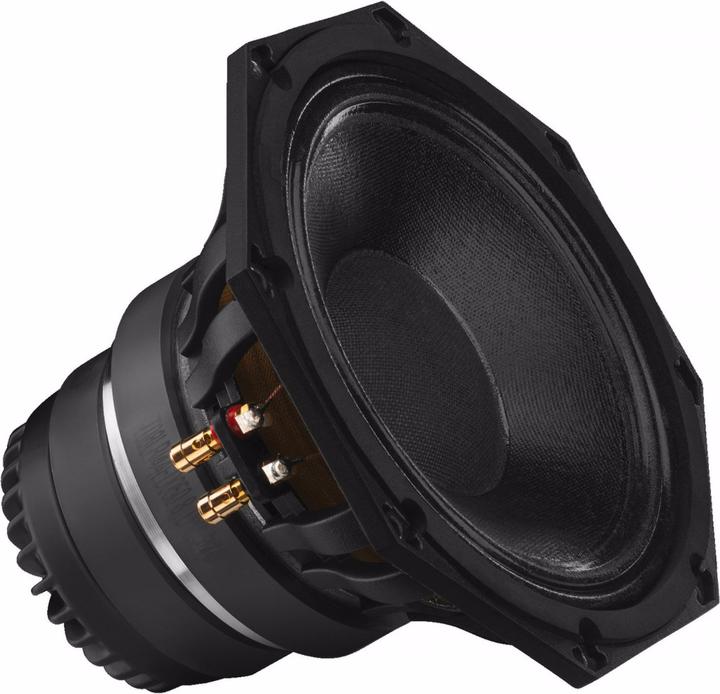

PA 2-way coaxial loudspeaker with integrated horn tweeter
- High power handling 20 cm PA woofer (8) with high efficiency
- Coaxially arranged tweeter horn with 25 mm tweeter driver (1, VC = 44 mm)
- Excellent sonic characteristics
- Stable cast basket with rear ventilation of the centering spider
- Heat-resistant 50 mm voice coil (2) on polyamide voice coil former (TIL)
- Excellent and uniform radiation pattern
- Ideal for stage monitors or very compact full-range speakers
- Operation only permitted with crossover (recommended crossover frequency >1800 Hz)
Klang+Ton 08,09/2016 "You can't imagine more stability. For hi-fi and monitoring ideal coax at a more than fair price.".
Type | InWall Speaker |
Stack depth | 159 mm |
Item number | 17500461 |
Manufacturer | Monacor |
Category | Built-in speakers |
Manufacturer no. | SP-308CX |
Release date | 16.11.2021 |
Sales unit | 1 pcs. |
Type | InWall Speaker |
Loudspeaker construction | Passive speakers |
Application range | Built-in |
Colour | Black |
Exact colour description | Black |
Material group | Plastic |
Material | Polyimides |
Frequency range | 1000 - 22000 Hz |
Stack depth | 159 mm |
Maximum load | 300 W |
Speaker principle | 2-way |
Nominal power | 150 W |
Power handling capacity (max.) | 300 W |
Impedance Min. | 8 Ω (ohm) |
Material | Polyimides |
CO₂-Emission | |
Climate contribution |
Length | 169.30 mm |
Height | 208 mm |
Depth | 169.30 mm |
Weight | 4.80 kg |
Specifications may include unverified machine translations.
