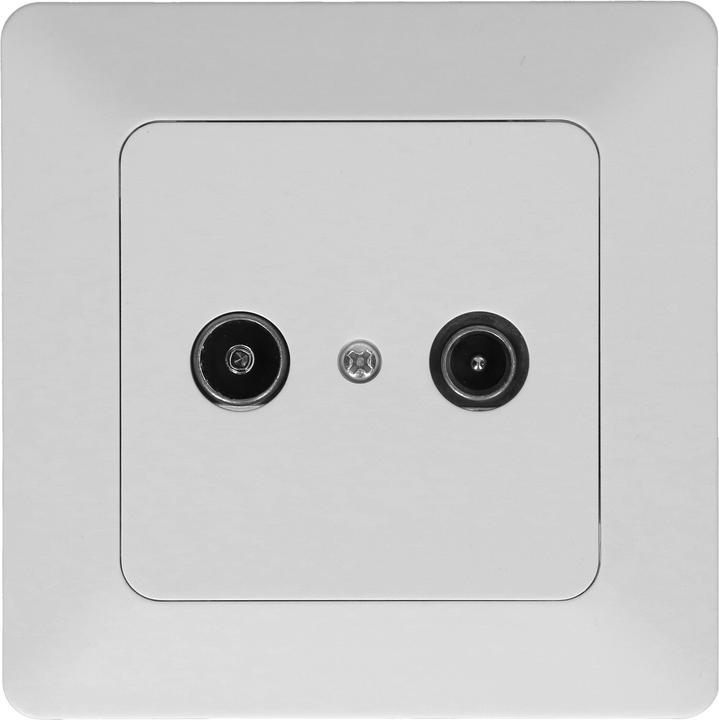

Modino UP TV/radio pass-through socket 14dB
More than 10 pieces in stock at supplier
Product details
TV/Radio 14dB through connection socket with termination resistor 75 Ohm, screw terminals, frequency range 5-1000 MHz, IP20, installation depth 30 mm, white, 90 x 90 mm.
This radio/TV socket is mounted in a device box in the wall. It is suitable for transmitting radio and television signals via the IECf and IECm connections. This through connection socket has an attenuation of 15 dB.
The innovative switch and socket program modino priamos impresses with modern Swiss design and high-quality craftsmanship. The interchangeable colored design profiles allow for a customizable harmony between furnishings and electronics. The extensive range offers solutions for the most demanding application challenges. The antibacterial surface reduces the risk of infection from frequent contact, e.g., in public spaces.
Exact colour description | Black, White |
Mounting type | Flush-mounted |
Documents |
Item number | 6614599 |
Manufacturer | Modino |
Category | Sockets |
Manufacturer no. | 140288 |
Release date | 26.9.2017 |
Colour | White |
Exact colour description | Black, White |
Material group | Plastic |
Material | Plastic, Polycarbonate (PC) |
Protection type (IP code) | IP20 |
Mounting type | Flush-mounted |
connector type | Plug terminal |
Additional properties | Halogen-free |
Smart home | Not compatible |
Manufacturer commitment | SBTi |
CO₂ emissions | 31.32 kg |
Climate contribution | CHF 0.75 |
Stack depth | 3 cm |
Length | 9 cm |
Width | 9 cm |
Height | 9 cm |
Weight | 130 g |
