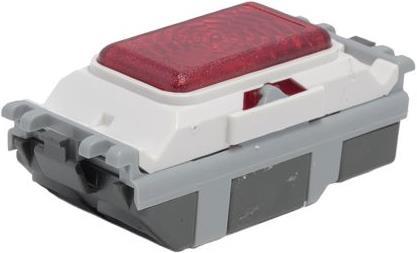

MK Electric 20A indicator unit neon red grid plus
Product details
Number of outlets = 2
Number of poles = 1
Number of poles = 2
Current rating = 20 A
IP protection = IP2X
Color = Red
Material = Carbamide formaldehyde
Series = Grid Plus
Rated voltage = 200 → 250 V ac
Surface finish = Semi matte
Illumination = Neon
Mounting on the cover panel = To plug in
Minimum depth of the housing = 38mm
Modules. They can be changed individually without rewiring the whole assembly. All units are 1 module wide unless otherwise specified. Rated voltage 240 V ac, 50 Hz. Dimensions: Switch module, W x H x D: 25 x 59 x 25 mm Warning buzzer, W x H x D: 25 x 59 x 34 mm Single dimmer modules are 25 mm wide, 59 mm high and 58 mm deep Double dimmer modules are 50 mm wide, 59 mm high and 60 mm deep 24/240 V warning buzzer, W x H x D: 25 x 59 x 31.5 mm Cable unit, W x H x D: 25 x 59 x 42 mm For dimmer (Order.No. ; 292-8809 292-8809 MK), the power/load ratings are: min. W or VA = 60; max. W or VA = 320, and it uses 2 module widths in a standard MK Grid Plus pitch.
Item number | 9870002 |
Manufacturer | MK Electric |
Category | Buttons + Switches |
Manufacturer no. | K4889 RED |
Release date | 8.10.2018 |
