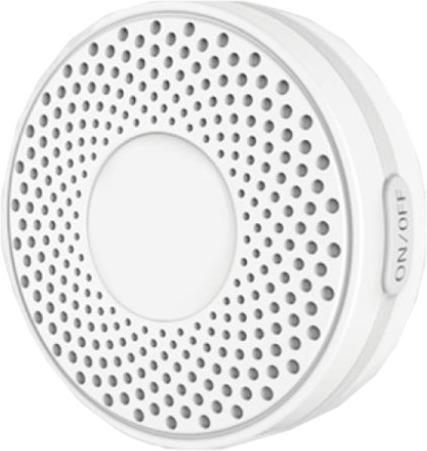

Minew Technologies I7-6008A BEACON I7 - MINEW i7 - Rock Beacon, BT 4.0, iBeacon

MINEW i7 - Rock Beacon, BT 4.0, iBeacon

The i7 is a very popular and modern iBeacon featuring an ARM Cortex chipset nRF51822 and BLE 4.0 technology. It comes with an external on/off switch, precise hardware, and stable firmware.

Features

• Programmed MiniBeacon with standard firmware

• Includes 1x 1000 mAh button cell

• Max. transmission distance of 100 meters

• The nRF51822 chipset with ARM Cortex has very low power consumption

• A logo can easily be printed on the top center of the housing

• Compatibility: Supports iOS 7.0+, Android 4.3+, Apple iBeacon standard, Bluetooth 4.0 (BLE) devices

• Battery life: 18 months, real-time battery status notification

• OTA and J-Link: Supports OTA, reserved J-Link port on the board for programming

• Soft Reboot: Restart the device via command without tools

• Configurable parameters: UUID, Major, Minor, device name, password, etc., special configuration application

• Transmission power levels: 8 adjustable levels, range from 0 to 7

• Transmission power range: -30 dBm to +4 dBm

• Connection modes: Transmission mode, non-connectable, configuration mode, connectable

• Mounting: 3M tape for direct wall mounting

• Housing color: White

• Battery model: 1x CR2477, 1000 mAh, 3 V

• Operating voltage: 1.8 - 3.6 V

• Transmission current: 10.5 mA

• Transmission range: max. 100 meters

• Antenna: 50 Ohm, integrated PCB antenna

• Net weight: 26 g, with battery

• Size: Diameter 50 mm x Height 15 mm.
