Product details

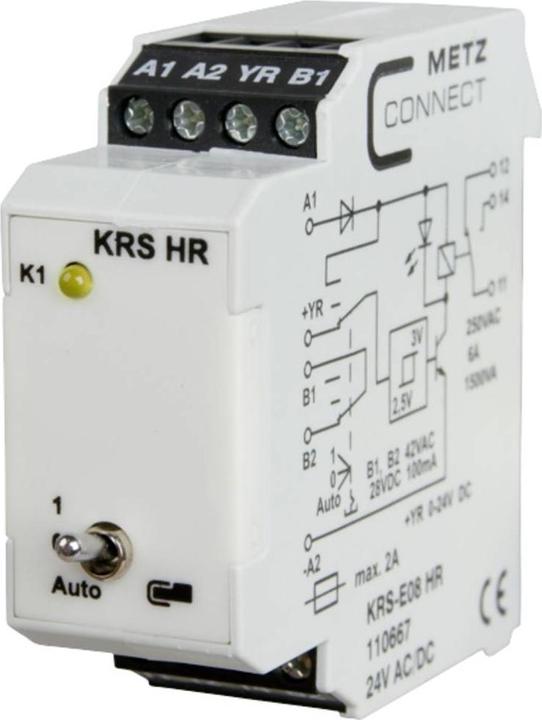

Metz Connect Interface Module KRS-E08 HR 24ACDC
Manufacturer: Metz Connect
Designation: Interface Module 1W
Type: KRS-E08 HR 24ACDC
Electrical connection type: Screw connection
With removable terminals: no
Rated current: 6 A
Rated control supply voltage Us at AC 50 Hz: 24 V
Rated control supply voltage Us at DC: 24 V
Voltage type for actuation: AC/DC
Drive, polarity: polarized
Switching behavior of the drive: monostable
Number of contacts as changeover: 1
With forced-guided contacts: no
Type of switching contact: Single contact
Complete device with base: yes
With LED display: yes
Material of contact coating: other
Material of contact insert: other
Material of contact: other
Protection class (IP): IP20
Width: 22.5 mm
Height: 61.3 mm
Depth: 60 mm
The threshold switch is used for controlling aggregates, pumps, fans, burners, etc. Once the input voltage reaches the switching threshold, the relay activates. If the input voltage falls below the cut-off threshold, the relay deactivates. Connection with screw terminals, with manual operating level.
