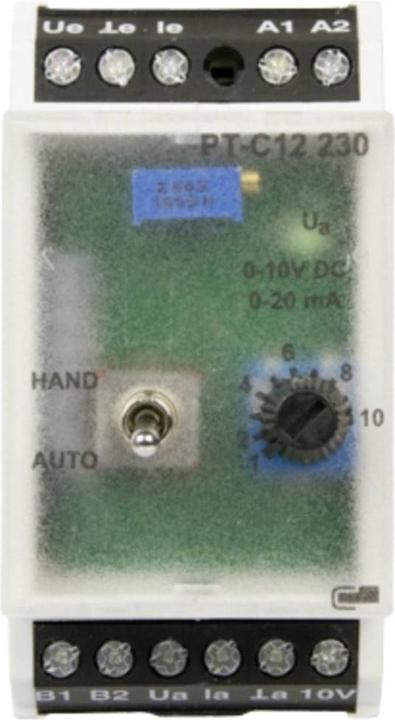

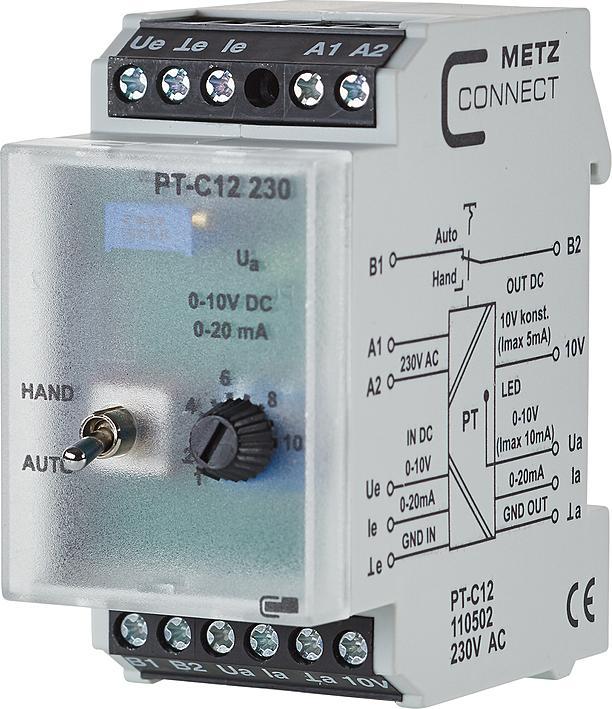

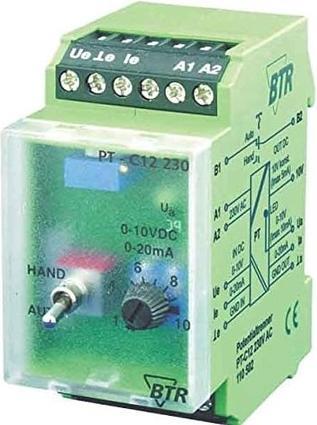

Metz Connect PT-C12

Metz Connect Potential Isolator 110 502

Manufacturer: Metz Connect
Designation: Potential Isolator 230VAC
Type: 110 502
Bidirectional: no
Galvanic Isolation: passive

The potential isolator / signal converter is used for the separation of analog signals in the range of 0 to 10 V DC and 0 to 20 mA DC or for signal conversion from 0 to 10 V DC to 0 to 20 mA DC or from 0 to 20 mA DC to 0 to 10 V DC. The input and output signals as well as the supply voltage are mutually isolated. The device can be connected to either an input signal of 0 to 10 V or 0 to 20 mA.

Function of Potential Isolation: In the PT-C12 230, the input signal of 0 to 10 V is proportionally matched to the output signal of 0 to 10 V. The PTi-C12 230 matches the input signal of 0 to 20 mA proportionally to the output signal of 0 to 20 mA.

Function of Signal Conversion with Potential Isolation: In the signal conversion from 0 to 10 V to 0 to 20 mA or from 0 to 20 mA to 0 to 10 V, the converted output signal can be adjusted using an integrated spindle trimmer. Additionally, a manual emergency operation mode with a HAND-AUTO switch and feedback contact is integrated. Via the front potentiometer, in the HAND switch position, the output signal can be set to 0 to 10 V or 0 to 20 mA. A constant output voltage of up to 10 V DC, 5 mA is available at the terminal 10 V. The integrated LED indicates brightness, depending on the level of the output signal Ua. Connection via screw terminals. EAN: 4250184122197.
