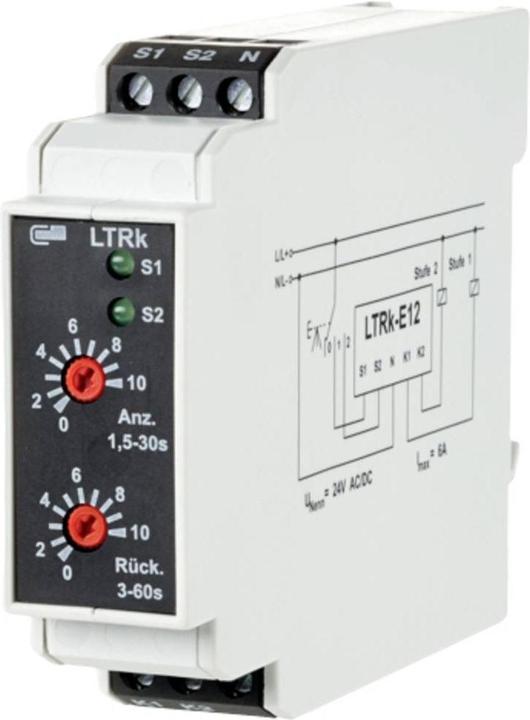

Metz Connect Fan Timer Relay LTRk-E12 24AC/DC

Manufacturer: Metz Connect
Designation: Fan Timer Relay
Type: LTRk-E12 24AC/DC
Electrical connection type: Screw connection
Delayed response function: yes
Delayed fallback function: yes
Remote control possible: no
Suitable as remote control: no
Rated control supply voltage Us at AC 50 Hz: 24 V
Rated control supply voltage Us at DC: 24 V
Voltage type for actuation: AC/DC
Time range: 1.5..30 s
Number of outputs, delayed, normally open: 2
Outputs, switchable delayed/undelayed: no
With semiconductor output: no
Suitable for DIN rail mounting: yes
Suitable for front mounting: no
Width: 22.5 mm
Height: 75 mm
Depth: 100 mm

The fan timer relay is specifically designed for controlling two-stage motors. The start and switch-off delays are separate and infinitely adjustable. Actuation is done with a two-stage switch. The two interlocked outputs control the motor protectors.

Functionality:
1. When directly selecting stage 2, stage 1 is first activated for the set starting time, allowing the fan to reach its rated speed. After that, stage 2 is activated.
2. When switching from stage 2 back to stage 1 or to OFF, a switch-off delay is triggered, allowing the fan to coast down before stage 1 is activated.
3. If stage 1 has already been activated for at least the set starting time, the switch to stage 2 occurs immediately. When switching from stage 1 to stage 2, the interruption must not exceed 250 ms. If this time is exceeded, the process occurs as described in point 1.

EAN: 4250184121060.
