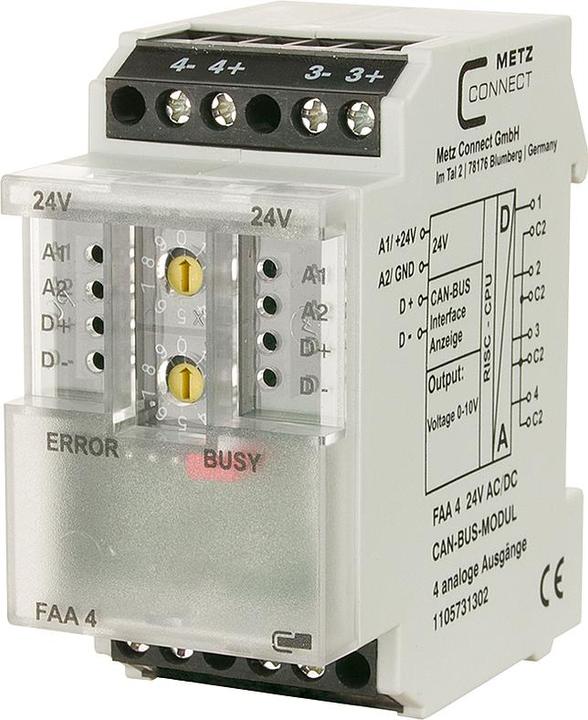

Metz Connect FAA 4 24 V AC/DC CAN

Metz Connect Output Module FAA 4, 24V AC/DC

Manufacturer: Metz Connect
Designation: Output Module
Type: FAA 4, 24V AC/DC
KNX Bus System: no
KNX Wireless Bus System: no
Wireless Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: others
Mounting Type: REG
Width in Division Units: 2
Version: Basic Module
With LED Display: yes
With Bus Coupling: yes
Number of Outputs: 4
Output Current: 5 mA
Output Voltage: 0..10 V
Protection Class (IP): IP20
Minimum Depth of Device Box: 60 mm

The FAA 4 output module is a CAN module with 4 analog outputs. It is suitable as a control signal generator, for example, for electric ventilation and mixing dampers, valve positions, etc. The fieldbus module is a universally applicable output module that is controlled via the CAN-BUS. The module is addressed using a configurable address, and the states of the outputs are transmitted in the data bytes. If an analog input module with the same address is present in the system, the voltage measured there is replicated at the corresponding output. Connection is made using screw terminals.
