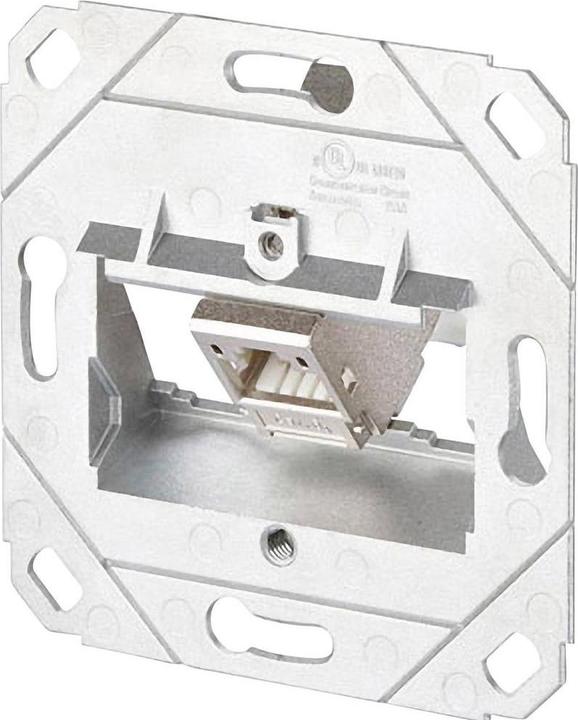

Metz Connect 130B12D11200-E RJ-45 socket outlet

Channel connection unit with C6A module 270° GHMT Cat.6A re-embedded PVP certified Cat.6A component tested according to ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09, TIA/EIA-568-C.2 (2009-08) and IEC 60603-7-51 Ed.1 (12/2008). GHMT certified compliance with class EA up to 500 MHz tested according to ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09. Component up to 600 MHz, Link up to 800 MHz for 10Gbit Ethernet (IEEE 802.3an), remote powering (PoE, PoE plus and UPoE) and HDBaseT suitable for connection of data lines AWG 26/1 - 22/1 (solid) and AWG 26/7 to 22/7 (stranded) to IDC insulation displacement terminals. Plug-in direction of module inclined 45° downwards. Strain relief with latching clip on loading piece compatible with design central pieces of switch ranges (Attention: 3 port central pieces currently only available from JUNG). Suitable for mounting in standard flush-mounted and cavity wall cups, except variant 3 port. Main features: Technical details, Socket type: RJ-45, Frame (area): Not, Product color: Metallic.
