Merten USB charging station insert

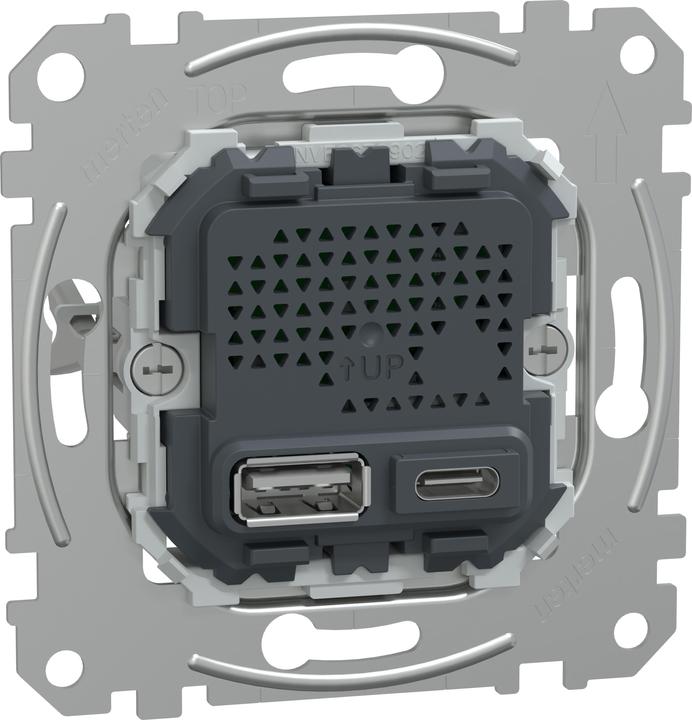

The USB charger MEG4366-0140 is a device with a mounting frame and claws that allows charging of mobile and tablet devices via 2 USB outputs A+C. The input voltage is 220-240V. The standby power consumption is below 0.05W, while the output power of the USB charger is 21W with PD technology. The USB A port provides a maximum output of 18W for small electronic devices and supports fast charging as well as proprietary protocols: DC 5V 3A 15W, DC 9V 2A 18W, DC 12V 1.5A 18W. The USB C port allows a maximum fast charging power of 21W for mobile devices and also supports PD fast charging and proprietary protocols: DC 5V 3A 15W, DC 9V 2.33A 21W, DC 12V 1.75A 21W, DC 5V-12V 0.1A-3A Max 21W. The USB A and USB C ports together provide a maximum output of 17W and a maximum of 2.4A for each port. The high-load USB ports allow for over 10,000 plug cycles. This USB charger features OVC III, over-temperature, short-circuit, inrush current, and overcurrent protection, enhancing safety levels. It is mounted using screws. The charger is very robust and has a lifespan of 30,000 hours at an output power of 21W at 25 °C. It allows for flush mounting. The dimensions are (W) 71mm x (H) 71mm x (D) 30mm. The USB charger is made of PC (polycarbonate) GF10 FR, making it particularly durable. It achieves protection class IK04, meaning it is protected against impacts of 0.5 joules. Additionally, it meets protection class IP20 against solid objects and liquids. It is ideal for charging USB devices directly at the wall charger, making external chargers unnecessary. The product comes with a declaration of conformity (EU) and a CB report. It complies with the standards EN-IEC 62368-1, IEC 61000-3-2, EN 61558-1, EN 61558-2-16, EN 50032, EN 55035, EN 50563, EcoDesign 2019/1782/EC, RoHS, and REACH.
